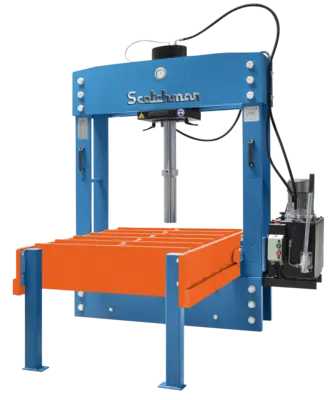

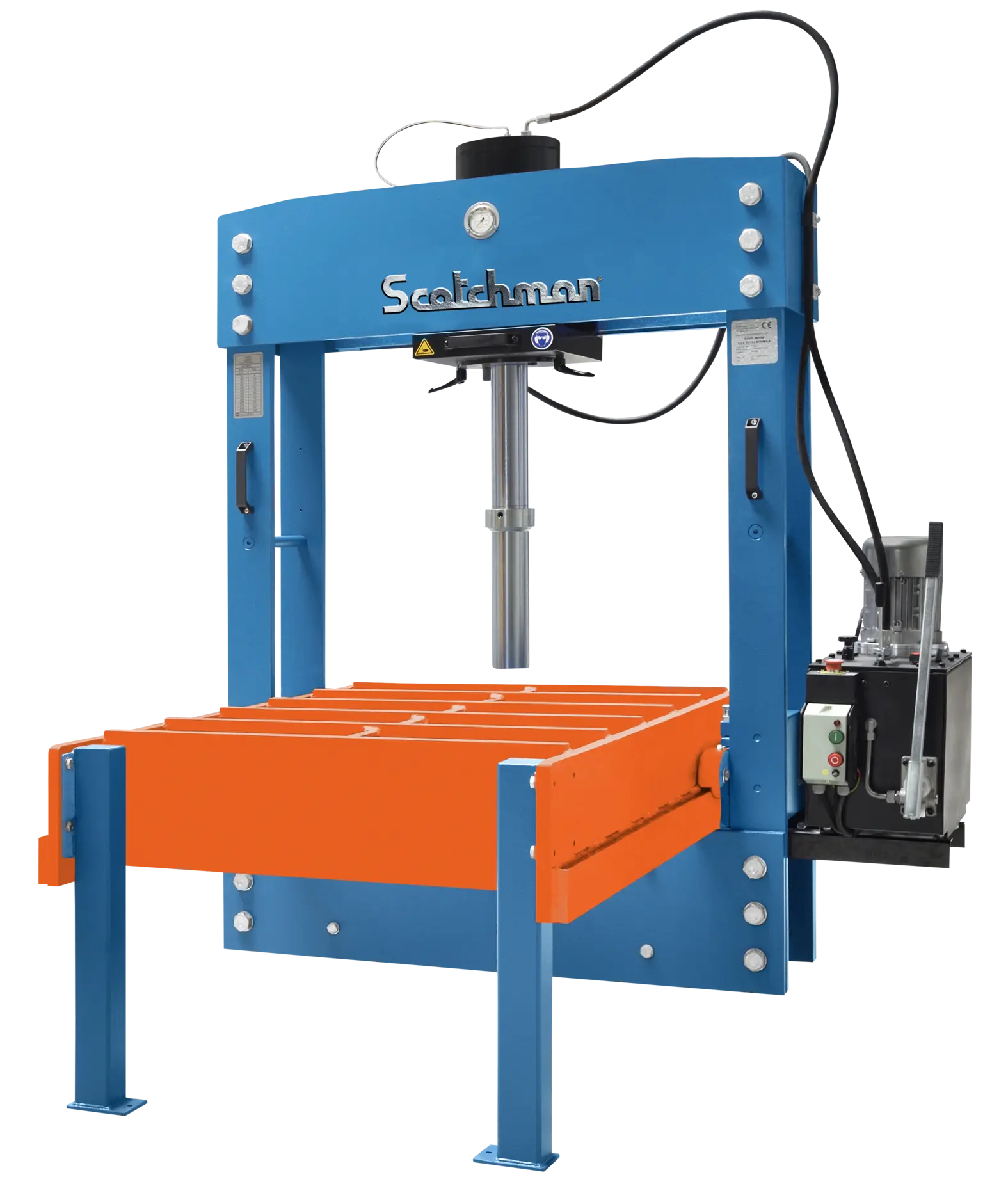

176 TON MOVABLE FRAME H-PRESS
Smooth & precise, heavy-duty and versatile; These presses are industrial-grade and ideal for assembly, straightening, fabrication, quality control, maintenance, product testing, bending, & forming.
This 176 ton press has a movable press frame which allows for overhead loading of heavy workpieces and is ideal for the straightening of large sheets and structures. Easily slide the ram head from side to side and move the press frame forward and back to access all different points of the work surface. Thanks to the movable frame and movable cylinder design you can easily reach every point of the ‘to be pressed’ surface. Movement of the ram cylinder and press frame are done manually.
The quality of these hydraulic straightening presses is very high and the hydraulic unit is equipped with a pressure regulator, 2 speeds, joystick and a hand pump for precision pressing.
Meets CE Standards, manufactured in the Netherlands, and comes with our 3-year warranty.
Product description
Heavy duty all-steel construction
Industrial grade hydraulic system
Movable press frame feature allows for overhead loading of heavy workpieces
Ram head slides easily from side to side;
press frame moves forward & back
3 Ram speeds
Cylinder extension to reach table
Joystick operation with hand pump option
Removable ram cap to accept a variety of tooling
Pressure gauge to monitor force
Meets CE standards
Warranty: Three years on parts
Made in the Netherlands
Press Force: 160 mt
Motor Options (must specify): 3.6 kW
Ram Speed – Approach: 7.48 mm/s
Ram Speed – Press: 2.40 mm/s
Ram Speed – Return: 9.35 mm/s
Lateral Ram Slide: Manual
Max Load: 750 kg
Footprint
(L x W): 174 x 172.5 cm
Height Overall: 210.4 cm
Weight: 2,265 kg
