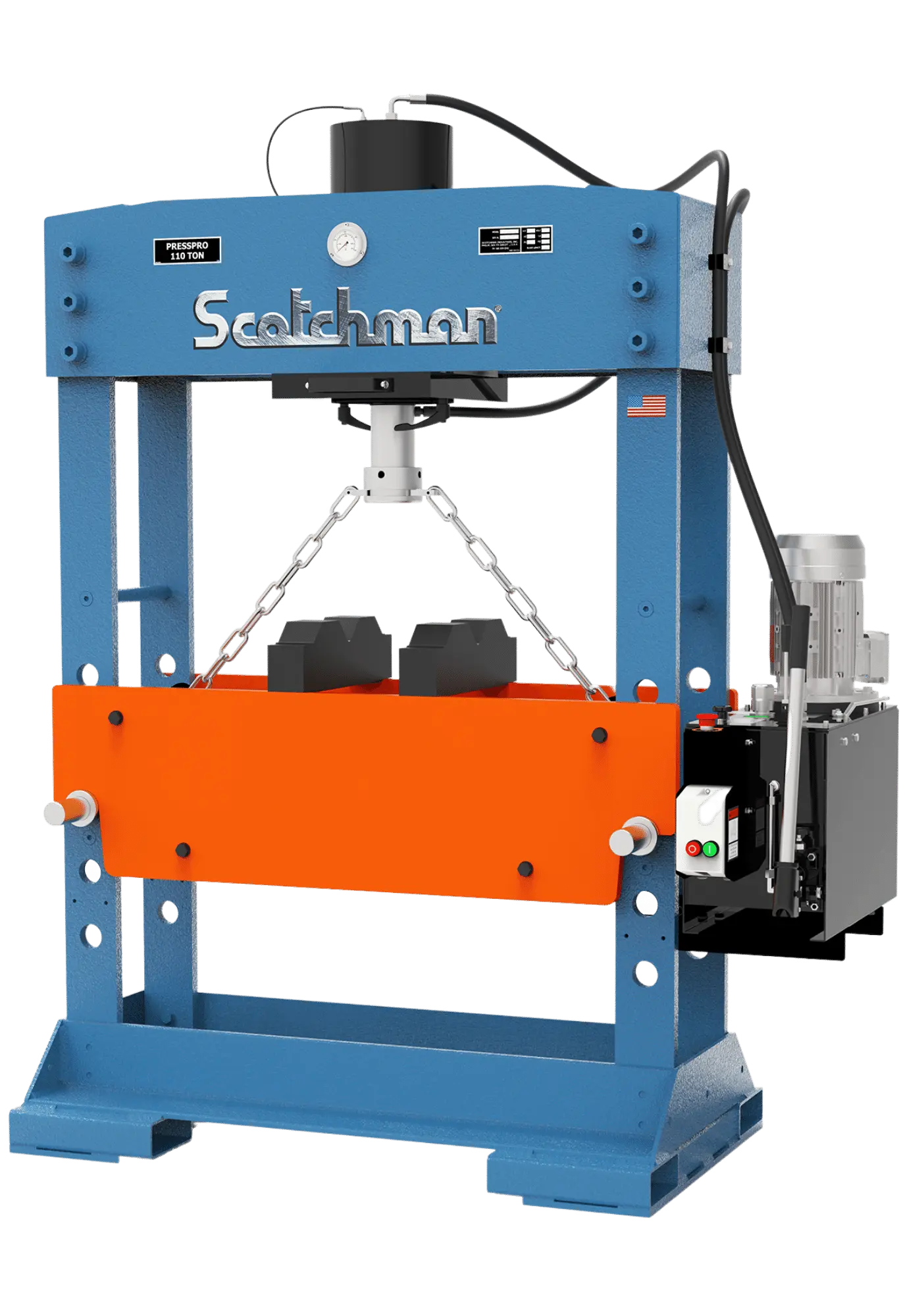

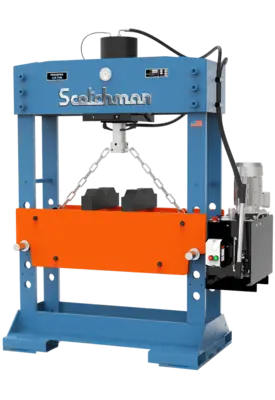

110 TON H-PRESS
Smooth & precise, heavy-duty and versatile; These presses are industrial-grade and ideal for assembly, straightening, fabrication, quality control, maintenance, product testing, bending, & forming.
The 110 ton workshop press is our all-time best-seller!
Our 110 ton hydraulic press is equipped with a movable cylinder (left-right) and an in-height adjustable working table. Furthermore, it has a pressure regulation, 2 speeds, a joystick and a hand pump for precision pressing.
Smooth & precise, heavy-duty and versatile; This hydraulic press is industrial-grade and ideal for assembly, straightening, fabrication, quality control, maintenance, product testing, bending, & forming.
The open side frame design allows for material to pass through and provides flexibility to work on the longest work pieces. Built for the big jobs as well as the small ones; the adjustable H-frame bed height offers increased versatility with its ability to raise and lower the table for the best working distance possible
Meets CE Standards, manufactured in the Netherlands & comes with our 3-year warranty.
Product description
Heavy duty all-steel construction
Industrial grade hydraulic system
Ram moves laterally for added versatility
3 Ram speeds
Joystick operation with hand pump option
Removable ram cap to accept a variety of tooling
Adjustable H-frame bed/table height offers increased versatility
Open side-frame design allows for material to pass through
Hydraulic-assist for table height adjustment to maximize operator safety
Set of V-blocks to simplify your pressing jobs
Pressure gauge to monitor force
Meets CE standards
Warranty: Three years on parts
Made in the Netherlands
Press Force: 100 mt
Motor Options (must specify): 2.6 kW
Ram Speed – Approach: 7.54 mm/s
Ram Speed – Press: 2.47 mm/s
Ram Speed – Return: 9.06 mm/s
Open Height (min.): 180 mm
Open Height (max.): 930 mm
Lateral Ram Slide: Manual
Table Height: Manual with Hydraulic Assist
Footprint
(L x W): 167 x 87 cm
Height Overall: 214 cm
Weight (includes V-blocks): 970 kg
