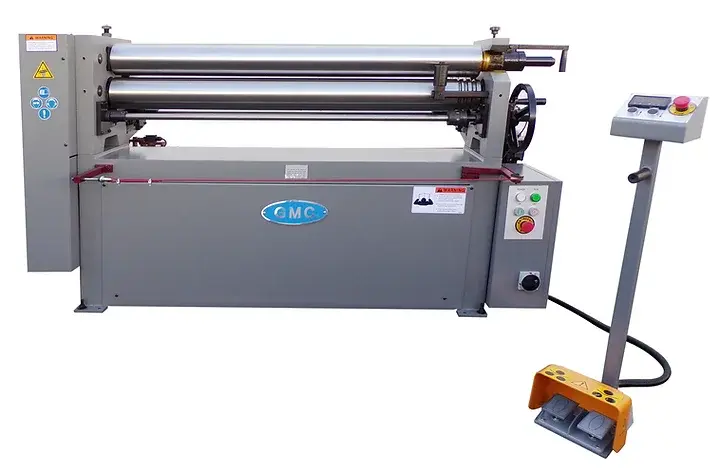

Power Bending Rolls 5′ x 10Ga

This machine has a 3HP Motor, rated at 220V three phase. Power bending roll up/down with push button & display.


Standard Included Equipment
Adjustable cone attachment
3/8”, ½” and 5/8” grooves on rollers
All (3) hardened rolls
Removable safety foot pedal
Operation & parts manual
Orange color front cover is optional.
E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs
Product description

Capacity:
Mild Steel: 5’1″ x 10Ga.
Capacity:
Stainless Steel: 5’1” x 12Ga.
Roll Dia.: 4 3/4″
Min. Bending Dia. Inch: 6″
Pre-bend inch: 0.12″
Rolls Speed ft/min: 20
Rolls Opening: 1/2″
Main Motor: 3HP 3PH
Weight: 3,050 lbs.
Overal Dimensions: 96″ x 32″ x 52″
