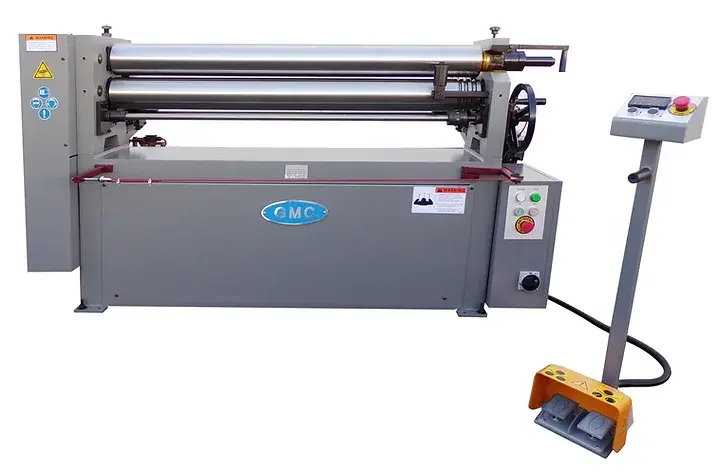

Power Bending Rolls 4′ x 12 Ga

This machine has a 2HP Motor, rated at 220V/440V three phase. Power bending roll up/down with push button & display.


Standard Features
SO 9001 certified
Taiwan machines
All (3) rolls are hardened rolls, up to 50-52 HRC
3-rollers are driven to perform high accuracy
Adjustable cone attachment included
3/8”, ½” and 5/8” grooves on rollers
One wheel one-side operated for bending roll
One wheel one-site operated for pinch roll (E model is powered)
Heavy duty casting frame
Heavy duty all steel welded construction
1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
Quiet running operation
Easy swing-out top roller
Safety line all around the machine for emergency stop
All rolls run forward and reverse
Safety type forward/reverse foot pedal
Power source 220V, (option: 440V, 3 phase)
One year industrial warranty for parts
Product description

Capacity:
Mild Steel: 4’3″ x 12Ga.
Capacity:
Stainless Steel: 4’3” x 16Ga
Roll Dia.: 3 1/2″
Min. Bending Dia. Inch: 4 3/4″
Pre-bend inch: 0.07″
Rolls Speed ft/min: 20
Rolls Opening: 1/2″
Main Motor: 2HP 220V Three phase
Weight: 1,950 lbs.
Overal Dimensions: 78″ x 30″ x 50″
