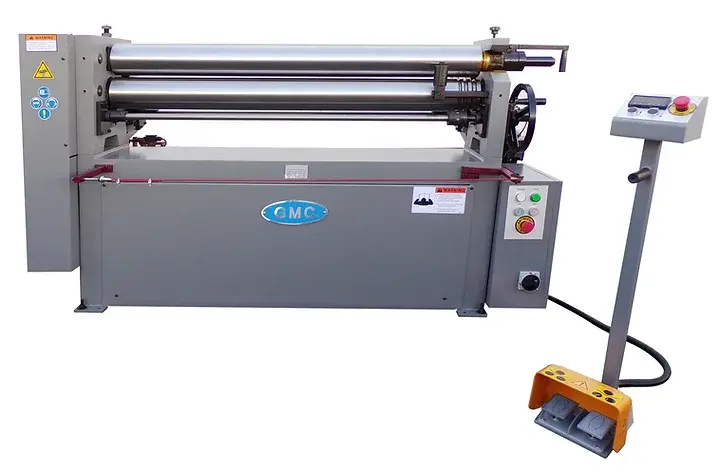

Power Bending Rolls 10′ x 10 Ga

This machine has a 7 1/2 HP Motor, rated at 220V three phase.Power bending roll up/down with push button & display. 6.70″ Rolls

Standard Features
SO 9001 certified
Taiwan machines
All (3) rolls are hardened rolls, up to 50-52 HRC
3-rollers are driven to perform high accuracy
Adjustable cone attachment included
3/8”, ½” and 5/8” grooves on rollers
One wheel one-side operated for bending roll
One wheel one-site operated for pinch roll (E model is powered)
Heavy duty casting frame
Heavy duty all steel welded construction
1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
Quiet running operation
Easy swing-out top roller
Safety line all around the machine for emergency stop
All rolls run forward and reverse
Safety type forward/reverse foot pedal
Power source 220V, (option: 440V, 3 phase)
One year industrial warranty for parts
Product description

Capacity:
Mild Steel: 10′ x 10Ga.
Capacity:
Stainless Steel: 10’ x 14Ga.
Roll Dia.: 6.70″
Min. Bending Dia. Inch: 9″
Pre-bend inch: 0.12″
Rolls Speed ft/min: 17
Rolls Opening: 1/2″
Main Motor: 7 1/2HP 3PH
Weight: 5,150 lbs.
Overal Dimensions: 152″ x 35″ x 56″
