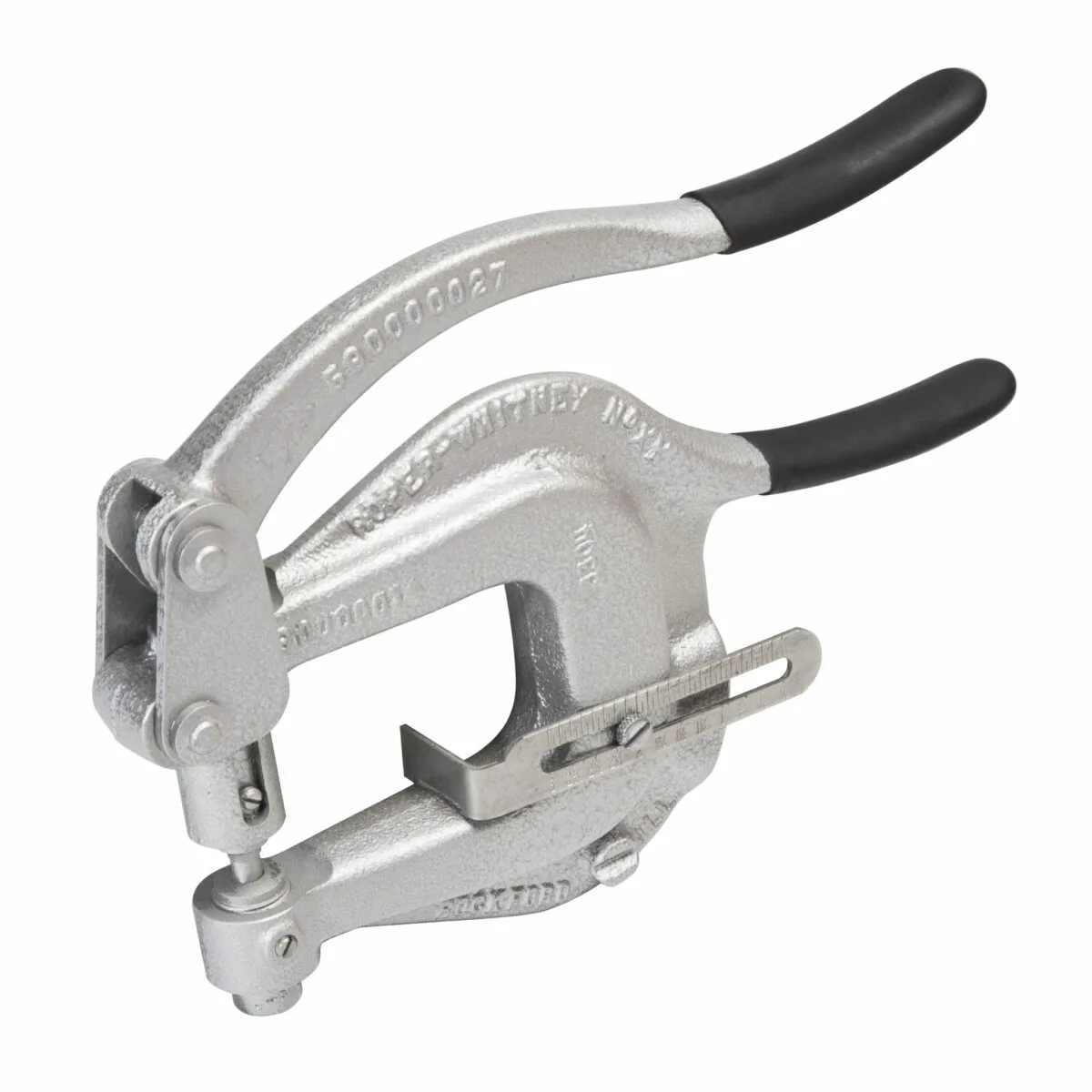

The No. XX has a deeper throat configuration than the No. 5 and can punch up to 3 1/4″ from the edge of the piece. The No. XX can also be used to punch light channels with a 1″ minimum inside dimension an a 1 3/8″ maximum flange. Includes one 9/32″ round punch and die set.
Product description
Light Duty Portable Punches are for limited punching power (1.2 tons or less). They are easy to carry in a pocket, on a belt or in a tool box. Hardened, machined bearing surfaces are used on this tool to provide dependable long life within the rated capacity. The No. XX has a deeper throat configuration than the No. 5 Jr. and can punch up to 3 1/4″ from the edge of the piece. The No. XX can also be used to punch light channels with a 1″ minimum inside dimension an a 1 3/8″ maximum flange. The XX can punch 1/4” Hole thru 16 Ga. Mild Steel.
Maximum rated capacity: * 1.2 tons
Smallest available
Hand operation
Adjustable stop gauge
Optional bench mounting base
7 lbs: 7 lbs
14 × 3 × 9 in: 14 × 3 × 9 in
