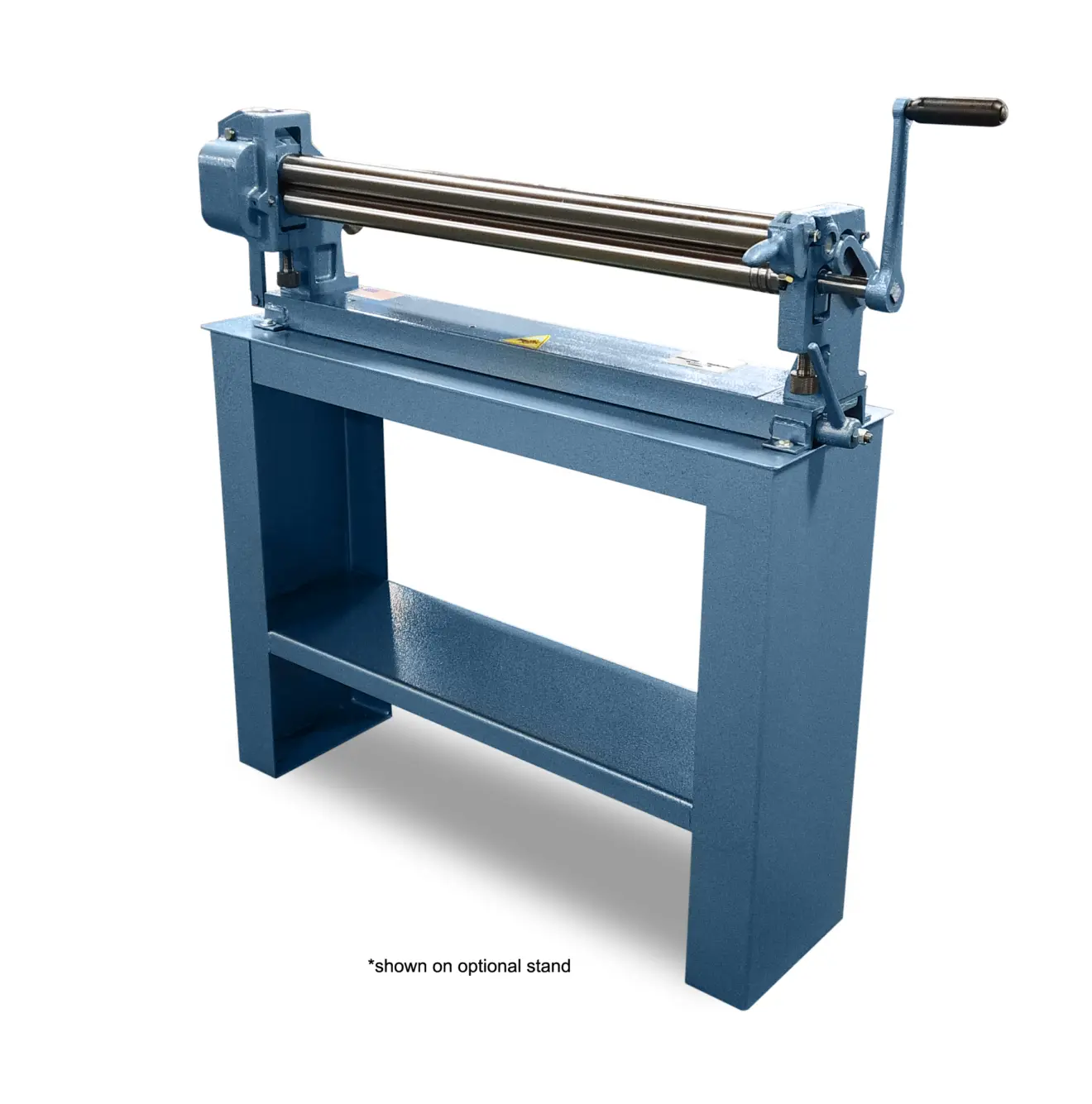

No. 0381 Manual Roll Bending Machine

The No. 0381 manual roll has 2″ precision turned and ground high carbon steel rollers. There are three wiring grooves 3/16″, 1/4″ and 5/16″. All rolls are standard with fully enclosed gear housings and all three rolls are driven. The upper roll lifts for conventional removal of the work piece. The maximum sheet length is 42″ with a thickness capacity of 24 gauge mild steel.
Product description

265 lbs: 265 lbs
61 × 11 × 15 in: 61 × 11 × 15 in
24 ga/ 0.61 mm: 24 ga/ 0.61 mm
42 in/ 1066 mm: 42 in/ 1066 mm
2 in/ 50 mm: 2 in/ 50 mm
1 in/ 25 mm: 1 in/ 25 mm
3/16, 1/4, 5/16/ 5, 6.5, 8 mm: 3/16, 1/4, 5/16/ 5, 6.5, 8 mm
