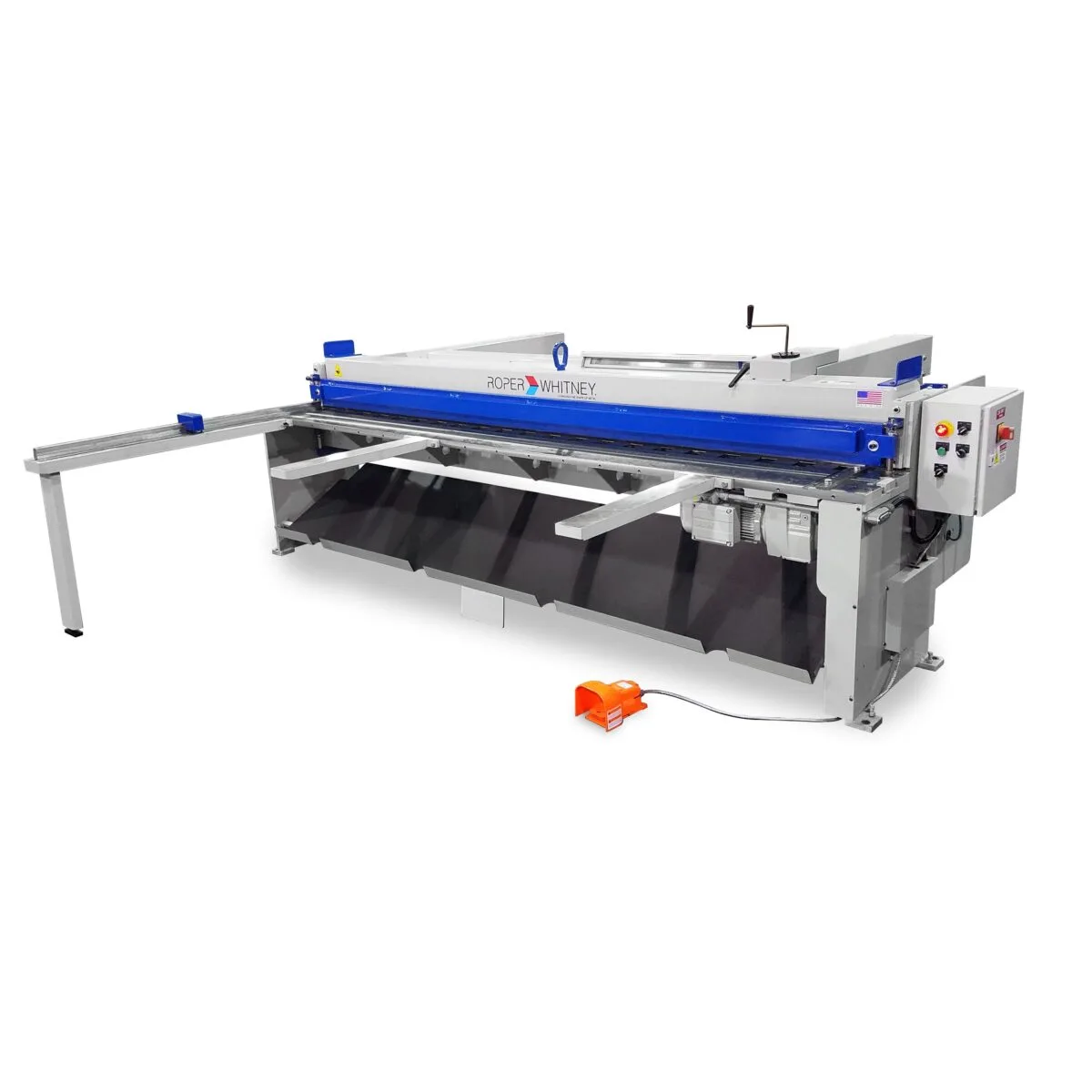

The MSE1016 capacity is 16-gauge mild steel, 20-gauge stainless up to 121 inches in cutting length. the MSE1016 utilizes a simple low maintenance design, coupled with an array of standard features for an attractive combination of high value and solid performance. Standard features include a 30-inch front-operated 2x back gauge system and 4-edge high carbon/high chromium (HCHC) blades and precision bearings. The MSE1016 is available as a standard model or in our popular “Performance Package” configuration which includes a 5′ squaring arm, a pair of front support arms, and an air operated sheet support available in either front or rear material return.
Product description
16 Gauge 1.6 mm: 16 Gauge 1.6 mm
20 Gauge 1.0 mm: 20 Gauge 1.0 mm
121 in. 3073 mm: 121 in. 3073 mm
30 in. 762 mm: 30 in. 762 mm
40: 40
3 hp: 3 hp
Solid Bar: Solid Bar
140 x 69 x 50 in. 3556 x 1753 x 1270 mm: 140 x 69 x 50 in. 3556 x 1753 x 1270 mm
4150 lbs. 1886 kg: 4150 lbs. 1886 kg
