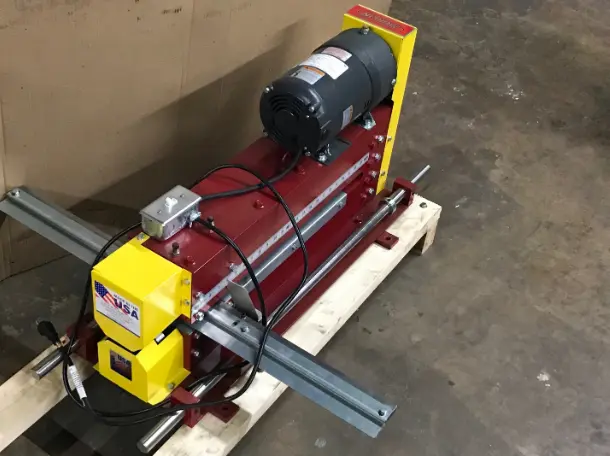

Morlin 16 Gauge Single Wheel Sheet Metal Slitter

Specifications:
Weight: 550 lbs
Dimensions: 46 x 19 x 30 in
Capacity: 16 Ga
Throat: 24″
Motor: 3/4 HP, 115v
Minimum Slitting Width: 1.25″
Maximum Slitting Width: 24.25″
Speed (Approx.): 90 FPM
Product description
New Morlin 16 Gauge Single Wheel Sheet Metal Slitter

BRAND NEW TO THE INDUSTRY, INTRODUCING THE MORLIN 1624 SHEET METAL SLITTER!!
Designed for on-site use yet equally at home in the industrial environment, this rugged rotary shear is something no one cutting sheet stock should be without. The slitter is capable of shearing strips anywhere from 1″ to 24″ wide from any size parent sheet with no limitation on length. Simple operation: Move pointer to the desired width of cut, lock in place with hand knobs, switch on and feed material – no tools required Designed for 16ga. mild steel or lighter, will also cut aluminum, stainless, and a variety of non-metallic materials with ease.
Standard features include:
Die-set type gauge mounting that insures easy setting and consistent squareness

Gauge mounting rods are extended to provide convenient carrying handles

Gauge is easily removed for machine transport and re-installed with no resquaring

Slitter knives are proven MORLIN “Quickset” design manufactured from tool steel Knives are outboard

mounted for easy access.
Knives are “reversible”, intervals between sharpening is double that of a single edge knives

“Adiprene” stripper rings are non-marking and serve to hold the material flat reducing twist

Drive shafts mounted with precision relubricable sealed ball bearings

Dual bearings mounted at knife end to minimize deflection and increase knife life

Heavy duty roller chain drive powered by 1/3 HP gearmotor

Standard 110 volt with grounded plug. Requires less than 6 amps
