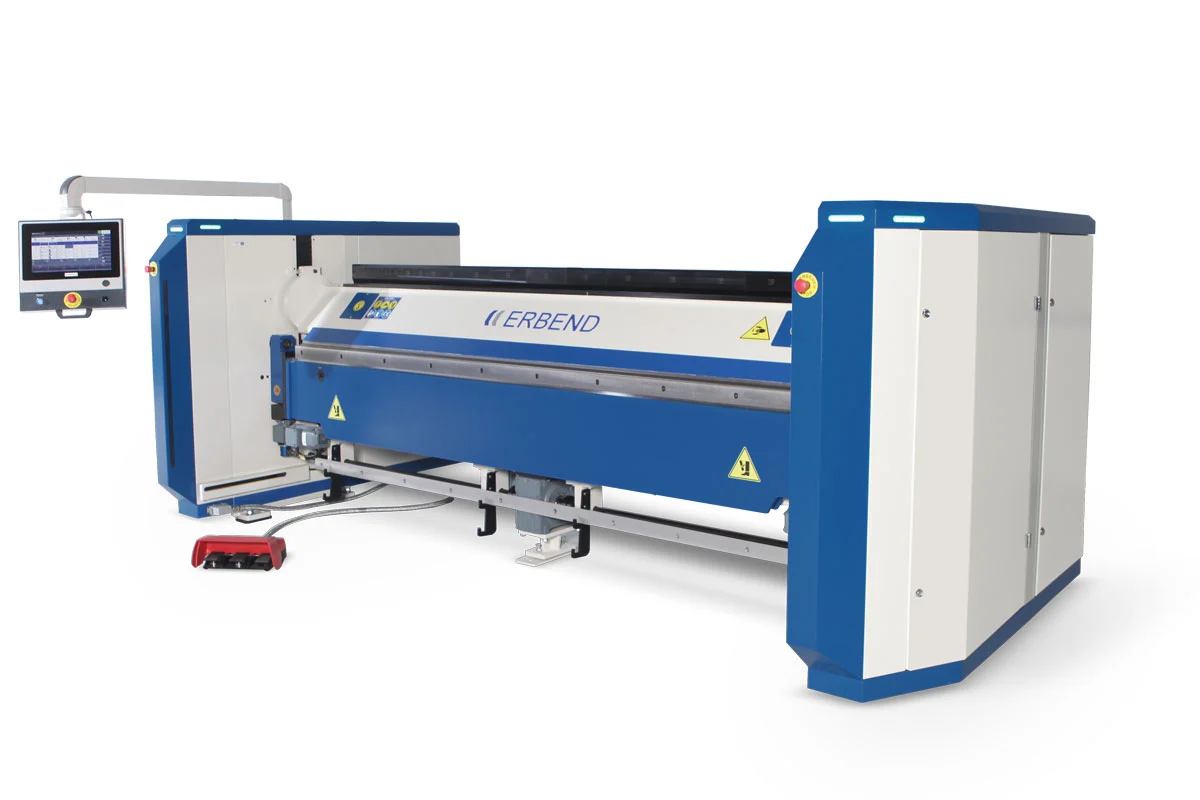

MFD CNC Motorized Combi Sheet Metal Folding Machine (0,3 – 3 mm thickness / 2550-4200mm length)
Overview
Description
0,3 – 3 mm thickness / 2550-4200mm length
200 mm opening height capacity on 180° rotating clamping beam with 2 tool stations as 100 mm high segmented goat foor tool and 20° single piece sharpnose tool.
Eccentric upper beam power transmission system for rapid clamping/unclamping.
Manual folding beam adjustment.
1000 mm servo backgauge system with feather grooves.
10 and 25 mm wide single piece folding tools as 2 sets.
ERFOLD BASIC CNC LBL Cnc control software on 15.6 ” touchscreen controller with swivel arm.
Solid lower beam tool without channels.
Front light barriers.
1500 mm servo backgauge system with rectangular sheet support table.
2500 / 3200 / 4200 mm servo backgauge system upgrade with L / T / U shape sheet support table options.
ERFOLD ADVANCED 2D/3D CNC Graphic Control Software.
Servo folding beam height adjustment.
Omega geometry upgrade on lower and folding beam.
Manual conical backgauge finger.
Motorized conical backgauge system.
Pneumatic goat foot tool quick clamping system.
Manual crowning system.
Product description
0,3 – 3 mm thickness / 2550-4200mm length
Specifications
MFD 2525: 4200
MFD 3220: 4600
MFD 4215: 5500
