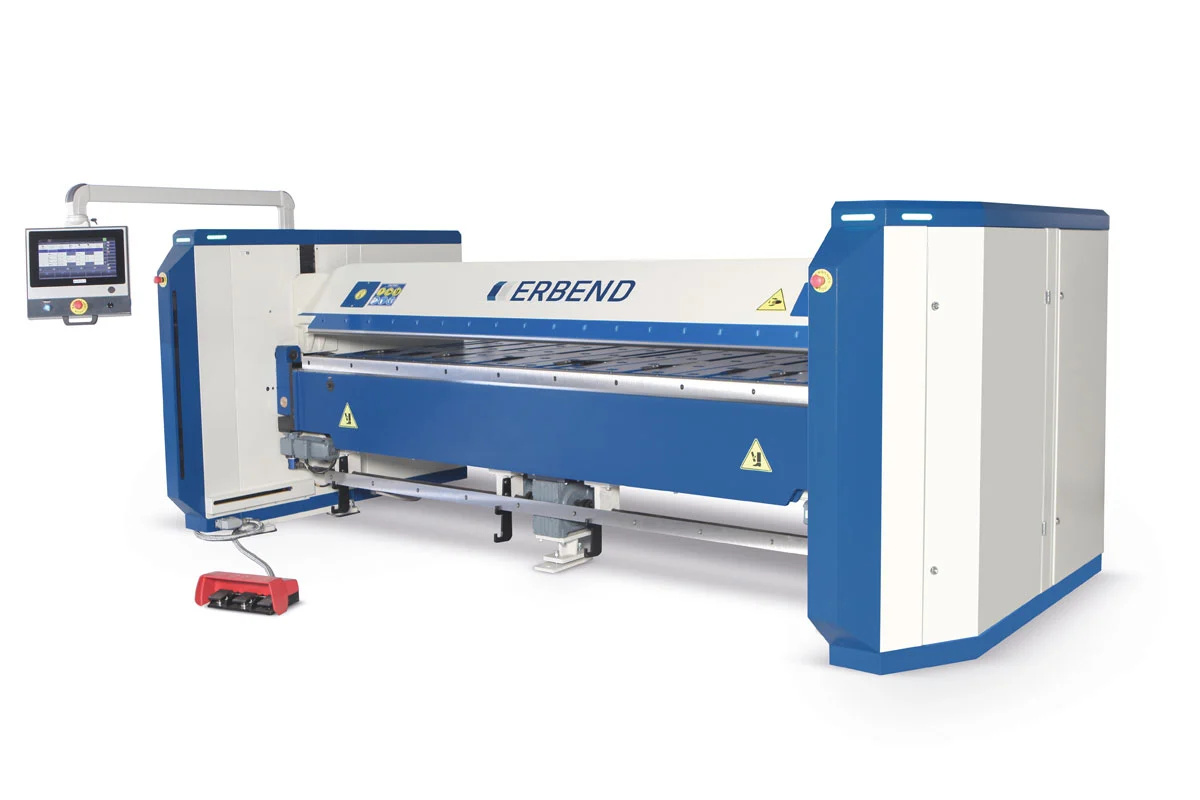

MFB CNC Motorized Sheet Metal Folding Machine (0,3 – 3 mm thickness / 2050-4200mm length)
Overview
Description
0,3 – 3 mm thickness / 2050-4200mm length
220 mm opening height capacity on the upper beam.
Eccentric upper beam power transmission system for rapid clamping/unclamping.
1000 mm servo backgauge system with feather grooves.
Manual folding beam adjustment.
10 and 25 mm wide single piece folding tools as 2 sets.
Solid lower beam tool without channels.
ERFOLD BASIC CNC LBL Cnc control software on 15.6” touchscreen controller with swivel arm.
Front light barriers.
1500 mm servo backgauge system with rectangular sheet support table.
2500 / 3200 / 4200 mm servo backgauge system upgrade with L / T / U shape sheet support table options.
ERFOLD ADVANCED 2D/3D CNC Graphic Control Software.
Servo folding beam adjustment.
Manual crowning system.
90 or 110 mm high segmented goat foot tool set.
Omega geometry upgrade on lower and folding beam.
Manual conical backgauge finger.
Motorized conical backgauge system.
Pneumatic goat foot tool quick clamping system.
Product description
0,3 – 3 mm thickness / 2050-4200mm length
Specifications
MFB 2030: 3800
MFB 2525: 4050
MFB 3220: 4500
MFB 4215: 5350
