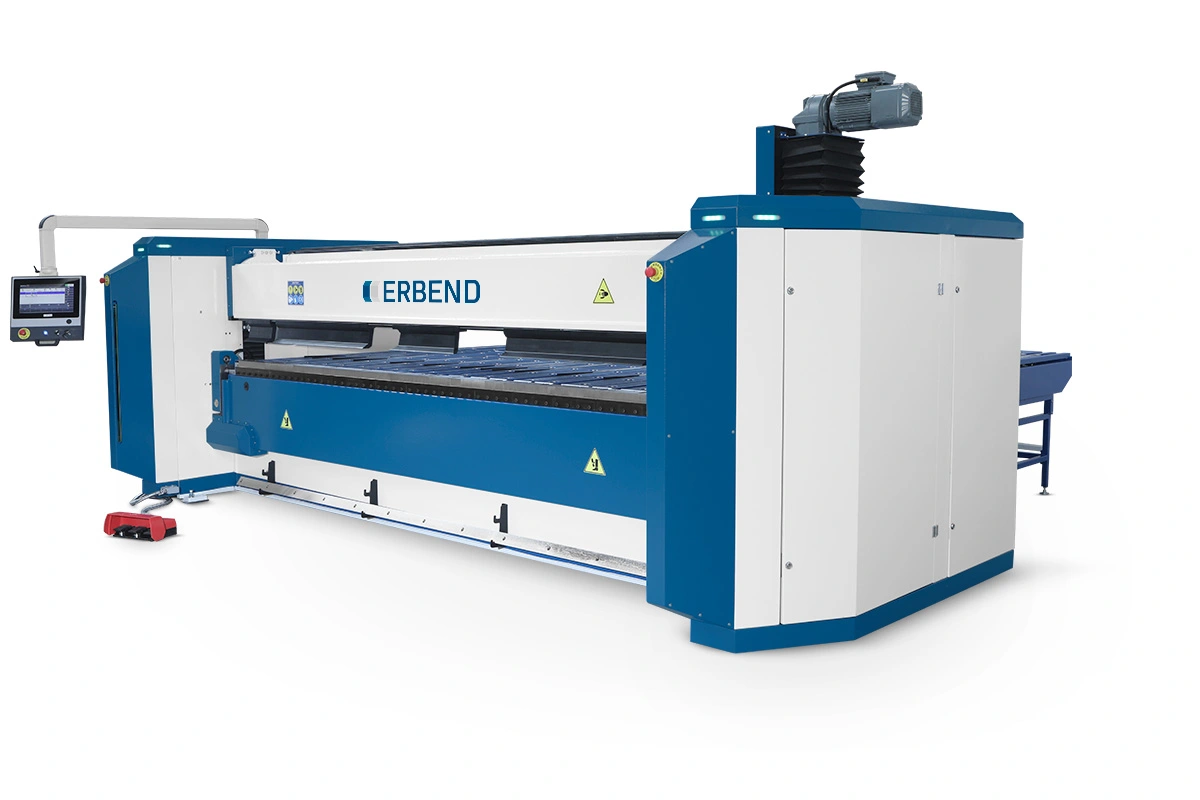

MFA CNC Servo Combi Sheet Metal Folding Machine (0,3 – 4 mm thickness / 2050-4200mm length)
Overview
Description
0,3 – 4 mm thickness / 2050-4200mm length
Dual drive clamping beam with ball screw spindle system for more clamping power.
250 mm opening height on 180° rotating combi clamping beam with 2 tooling stations as 125 mm high segmented goat foot tools on station 1 and 30° single piece sharp nose tool on station 2.
Solid lower beam with channels and 2 sets of single piece folding tools as 15 and 40 mm wide.
Manual folding beam adjustment.
ERFOLD BASIC CNC LBL control software on 15.6 ” touchscreen controller with swivel arm.
1500 mm servo back gauge system with pneumatic solid fingers and sheet support table with ball casters.
Front light barriers.
2500 / 3200 / 4200 mm servo backgauge system upgrade with L / T / U shape sheet support table options.
ERFOLD ADVANCED 2D/3D cnc graphic control software.
Servo folding beam adjustment.
Manual crowning system.
Pneumatic quick goatfoot tool clamping.
Segmented bottom or folding tools.
Product description
Specifications
MFA 2040: 6600
MFA 2535: 7100
MFA 3230: 8050
MFA 4225: 9450
