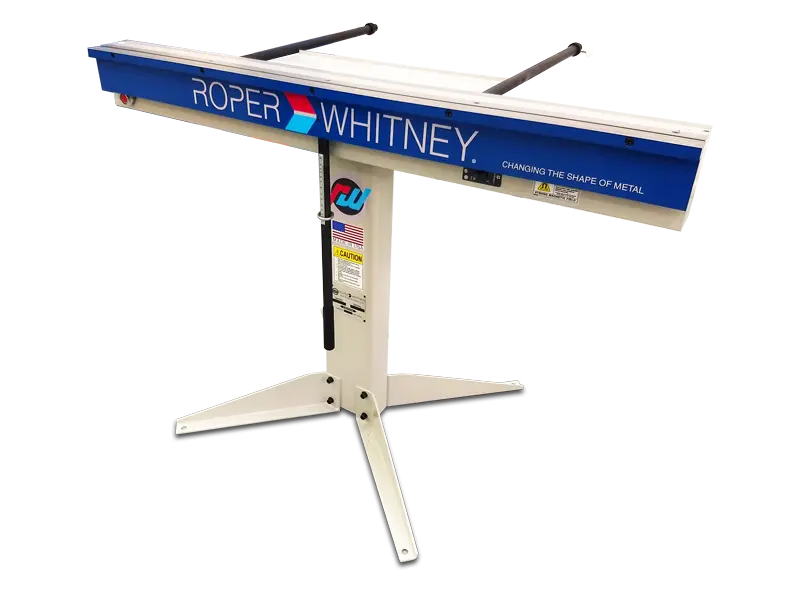

Magnabend

Magnabend offers performance characteristics no conventional bending brake can match. Its unique electromagnetic keeper clamping system eliminates typical interference points common of other machines and allows you to form several complex shapes not previously possible.
Product description
Simplicity is evident in Magnabend’s electromagnetic design which eliminates a conventional upper beam and more complex finger arrangements. Keepers (clamping members) are simply positioned over the work piece and are clamped in place electromagnetically when the bending beam is raised. Keepers self-adjust for material thickness as the apron moves.
The rugged simple construction incorporates only one moving part assuring low maintenance and versatility for all of your light duty forming requirements. The included tooling allows for a wide variety of complex shapes to be created right out of the box including rolled edges up 330°, partial length bends, closed shapes, unlimited box depths and heavier material bends (up to 10 ga.) in shorter widths.
Magnabend is the only one of its kind manufactured in the USA.
Triple Hinge System

Three hinges allow Magnabend to have a lighter bending beam without limiting durability and reliability.
Bend-Angle Gauge

Convenient bend angle gauge features adjustable stop for precise, efficient repeat bends.
Safety Features

The safety button engages a light magnetic force on the keeper. As well as a safety device, this force is a convenient way to stabilize the work piece for precise measurement before you activate full clamping power.

Capacity, Mild Steel: 18 Gauge at 48″ piece
16 Gauge at 36″ piece
14 Gauge at 24″ piece
12 Gauge at 12″ piece
Capacity, Stainless Steel: 22 Gauge at 48″ piece
Maximum Bending Width: 49 in.
Maximum Beam Depth: Unlimited
Maximum Beam Depth: Unlimited
Minimum Reverse Bend: 3/4 in.
Finger Nose Angle: 67.5º
Electrical: 115V, 1PH, 60Hz
Bending Beam Motor: 2 + 2 hp
Weight: 275 lbs.
Dimensions, L x W x H: 27 x 52.25 x 33.25 in.
Includes:: Floor Stand
(1) 52.5″ Bending Bar
(1) 26″ Bending Bar
(1) 12″ Bending Bar
(1) 6″ Bending Bar
(1) 4″ Bending Bar
