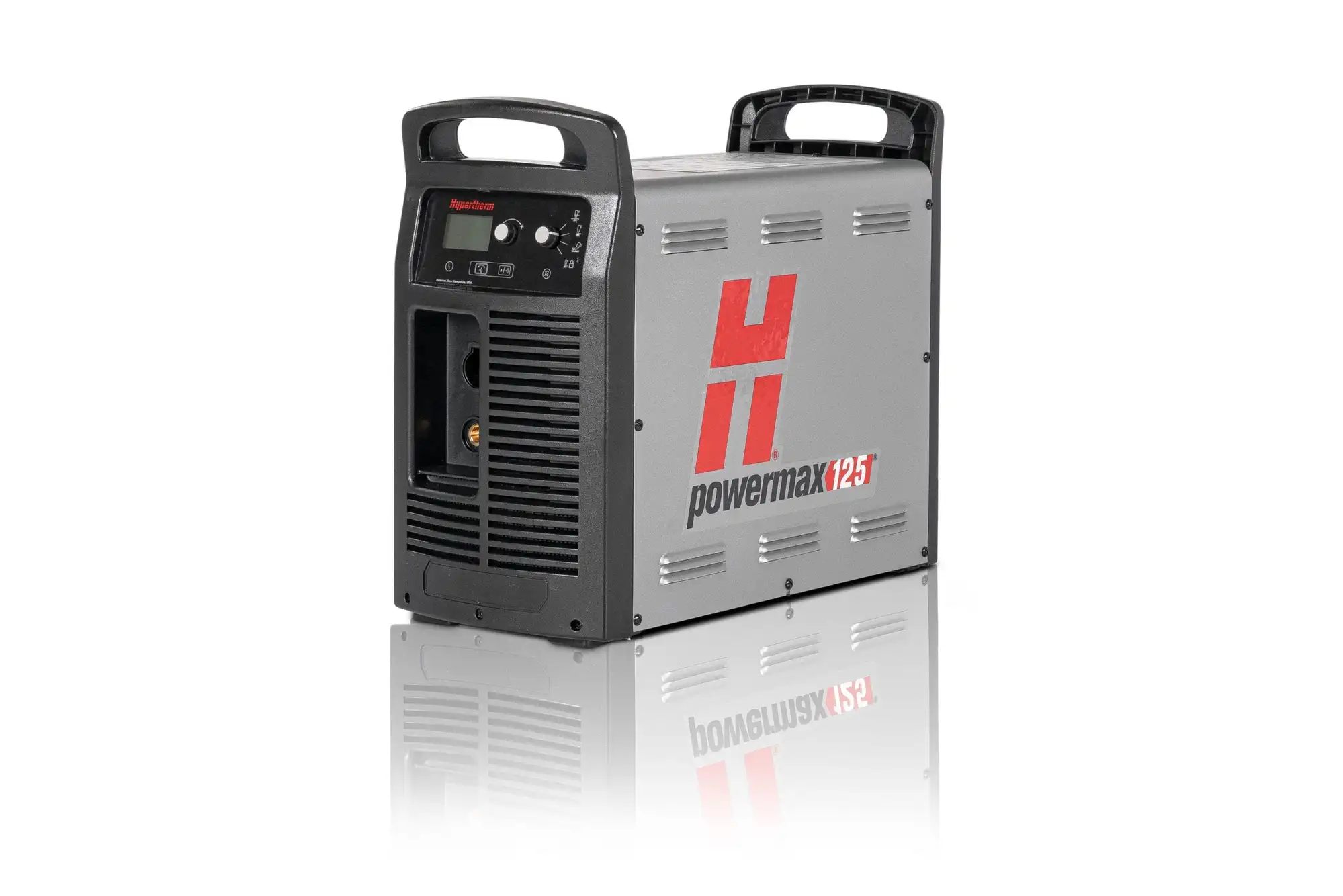

Delivering maximum power and performance for air plasma, the Powermax125® plasma system cuts thick metals fast. Able to make short work of the toughest CNC Plasma Cutting, the system offers a 100% duty cycle at 1″ mechanized pierce capability. It also gives you the latest technological innovations, such as Smart Sense™ technology to automatically adjust the gas pressure. Optional Duramax® Hyamp™ torch styles provide versatility for hand cutting and CNC Plasma Cutting.
Pierce up to 1″ mild steel (mechanized cutting)
Pierce up to 1.75” mild steel (handheld cutting)
Maximum 1.5″ mild steel cut capacity (Edge Start)
Interchangeable hand and machine torch capability
Hypertherm Powermax Plasma Cutters are in stock and available only for purchase with a Arclight Dynamics CNC Plasma Systems. NOT Sold Separately.
Product description
Finish jobs faster with cut speeds two and a half times greater than oxyfuel on 1/2” mild steel.
Superior cut quality let you spend less time on grinding and edge preparation.
Multiple, easy-to-use torch styles let you tackle a wide variety of jobs using the same system.
Fine cut consumables allow for intricate detailed cutting on thin gauge sheet metal.
Smart Sense technology automatically sets correct air pressure based on torch length and operating mode.
Handheld, straight machine and robotic torches for greater versatility and ease-of-use with your CNC plasma table.
Wide voltage tolerance improves performance on motor generators and in low-line conditions.
Improved shield reduces dross buildup and enables smoother drag cutting for a better cut.
Duramax torches are designed for high impact and heat-resistance.
Spring Start technology ensures consistent starting and a more reliable torch.
Low maintenance for maximum up-time it keeps on going.
Long consumable life for lower cost and more up-time.
Exclusive electrode end-of-life detection protects the torch and work piece from damage by automatically stopping power when the electrode is overused.
High power efficiency lowers energy consumption.
Hypertherm Certified™ reliability ensures peak performance even in the harshest environments.
3 Phase only
480 or 600 Volts
Minimum 60 gallon tank
5 Horsepower motor or greater
15 CFM at 90PSI
Air filtration and drying system
