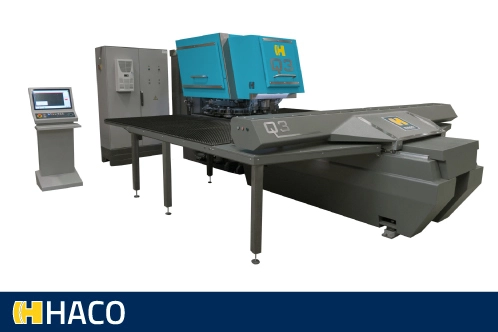

HACO The Q3/Q4

With a 22 or 30 ton, high-speed, servo hydraulic punching head, sheet dimensions of 2,000 x 1,500 mm and a rotation axis for all tools, the Haco Q3/Q4 is the perfect CNC turret punching machine to meet your highest demands.
Product description
The user friendly TPS 84S Graphics controller offers everything you need to fit the high demands in contemporary punching. The high speed control, fast processing and intuitive user interface results in an innovative system capable of handling simple as well as complex tasks. From the initial idea to the production of parts, the TPS 84S Graphics is your ideal partner.
Standard features:
High speed servo-controlled punching head
6 axis CNC TPC69T Graphics touch screen control with graphical programming
4 Repositioning cylinders (2 upper, 2 lower)
3 Hydraulic sheet clamps
4 Vibration dampers
12 or 20 tool stations complete with tool holders
Slug suction device
Part chute door 300x470mm
Quick tool set for tool alignment
CE optical safety light
Automatic oil spray machine
Already have a punching machine from Trumpf? Don’t worry the HACO Q3 is compatible with Trumpf TruPunch tooling. This way you can expand your machinery with a HACO Q3 without losing your expensive tools, you even get to save extra on the purchasing price.
