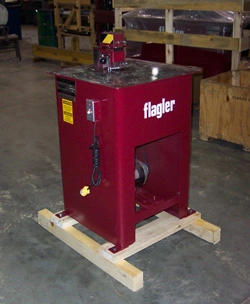

For manufacturing fittings using the button lock seam rather than Pittsburgh 2 step operation, first the flange is formed then the buttons are punched. This machine is built with a heavy duty cast iron gear housing with oil bath and complete with Flange Follower.
Product description
Specifications:
Capacity: 20-26 Ga.
Height of Flange: 3/8″ High
Speed: Approx. 18 feet per minute.
Motor: 3/4 HP 115/1/60/1800 RPM .
Drive: Vee Belt.
Base: Arc Welded Steel. heavy Top Plate
Dimensions: 24″ long, 24″ wide, 38 5/8″.
Feed Table Height 34 5/8″
Shipping Weight: Approximately 250 pounds.
