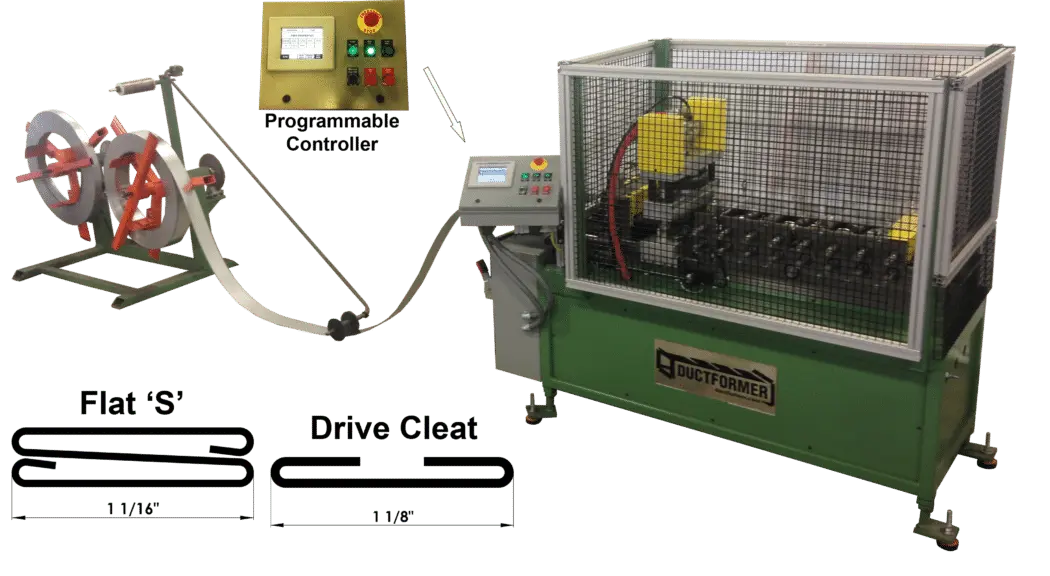

The Automated CR8-SDC Auto Feed Rollform System is designed to feed and form the Flat ’S’ and Drive Cleats on the inboard Rolls directly from coil stock. The Automated System consists of a Dual Station Coil Cradle, Flying Shear Cut Off Die, and Pre-Tooled Rollformer to form either Flat ‘S’ or Drive Cleat sections in a single pass through operation. The Pre-Tooled Rollformer consist of one (1) Set of Hardened and Polished Steel Roller Dies to form the Drive Cleat Profile and One (1) Set of Hardened and Polished Steel Roller Dies to form the Flat ‘S’ Profile in a single pass through operation. Rolls will form the section from 22 – 26 gauge galvanized mild steel.
Product description
A User Friendly / Programmable Controller will sequence the strip feed and cycle the Cut Off Die based on simple batch quantity and part length inputs. Precision craftsmanship and materials with direct drive oil bath gear reduction make the CR8 the quietest machine in it’s class! See the difference, hear the difference!
Specifications
Gauge Range………………………..22-26 Ga.
Length………………………………………225”
Passline Height……………………………..35”
Width………………………………………….39”
Motor………………………………………..5 Hp
Voltage……………………………….220 / 440
Electrical………………………3 Phase / 60Hz
Shipping Weight……………….2,200 Pounds
Line Speed……………………………..24 FPM
Features
8 Station Rollformer
All Gear Drive (“off the shelf”)
Self-adjusting Full Gauge Range
Oil Bath Gear reduction transmission
Hardened tool steel Entrance Guides
Hardened & Polished Rolls
Maintenance free Anti-friction Sealed Roll Bearings
Pneumatic Flying Cut-Off: Features
8 Station Rollformer
All Gear Drive (“off the shelf”)
Self-adjusting Full Gauge Range
Oil Bath Gear reduction transmission
Hardened tool steel Entrance Guides
Hardened & Polished Rolls
Maintenance free Anti-friction Sealed Roll Bearings
Pneumatic Flying Cut-Off
