14″ SEMI-AUTOMATIC SAW FOR MILD STEEL
Saw has an Air-operated clamp for material vise, pneumatic power down feed with electric controls & emergency stop button

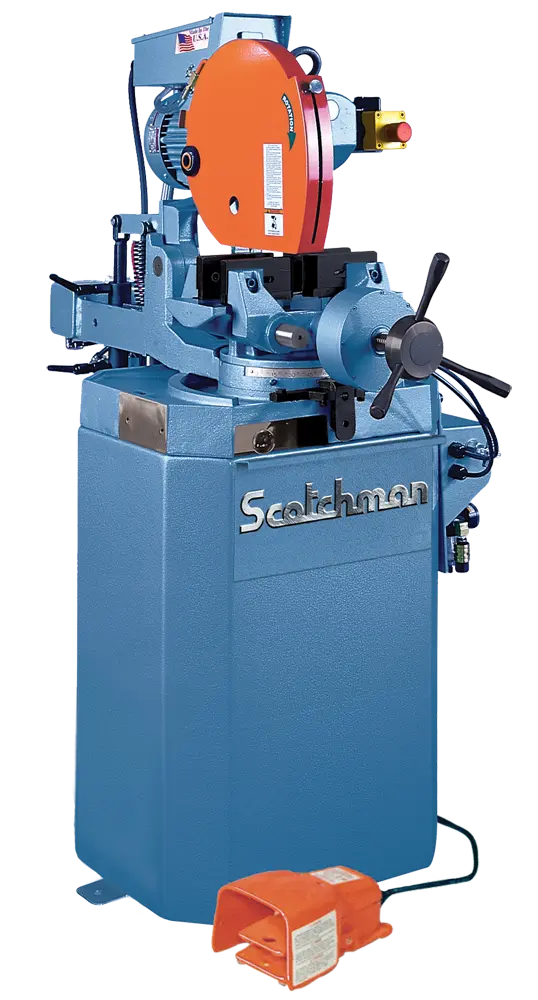

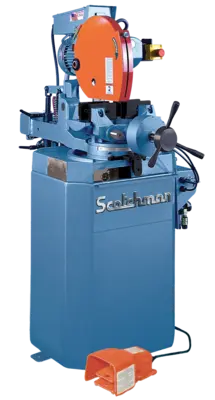

The Scotchman CPO 350 PKPD semi-automatic cold saw is built for industrial use and designed to make precise burr-free cuts on a production scale. This American-made saw accepts a 350mm HSS blade and can easily cut 4.5” round tube and 2” solid at 90°; plus, it has mitering capabilities of 135° with a miter locking device allowing for quick & accurate stop setting at 45°, 90° and 135°. The semi-auto cycle is simple to operate with a press on the remote foot pedal and features a double clamping and self-centering vise for maximum material hold. Its pneumatic vise and automatic return save you time, and the integrated flood coolant system maintains a high cut quality while extending the life of the blade saving you money.
Product description
Semi-automatic cycle
Air operated double self-centering vise assures burr-free cuts
Pneumatic power down feed with electric controls
Emergency stop button
Miter capabilities 45 degrees left to 45 degrees right
Miter locking device: Quick, accurate settings-stops at 45 degrees left, 90 degrees, and 45 degrees right
Capable of slotting
Double reduction, hardened and ground worm and wheel gear box
Chip drawer
7 Gallon flood coolant tank with pump
One 315 mm diameter HSS blade
One blade wrench
One gallon coolant
Complies with ANSI B11.10 safety standards
Warranty: Three years on parts
Made in USA
Cutting Speeds
(must specify when ordering): Motor rate:
3 hp
HT(High Turn) – designed for thin wall tube 0.060 wall thickness or thinner and non-ferrous material: Motor rate:
3 hp
VS (Variable Speed) ~ wired 230/460, 3-ph: Motor Rate:
5 hp
VS (Variable Speed) ~ wired 220, 1-ph: Motor Rate:
5 ph
SS (Single Speed) – designed for 220v 1ph applications: Motor Rate:
3 hp
Maximum Cutting Capacities
(based on mild steel): 45 Degree
4″ (102 mm)
3-3/4″ x 3-3/4″ (95 x 95 mm)
3-3/4″ x 3-3/4″ (95 x 95 mm)
SOLID
Round
Square: 45 Degree
1-1/2″ (38 mm)
1-1/2″ x 1-1/2″ (38 x 38 mm)
