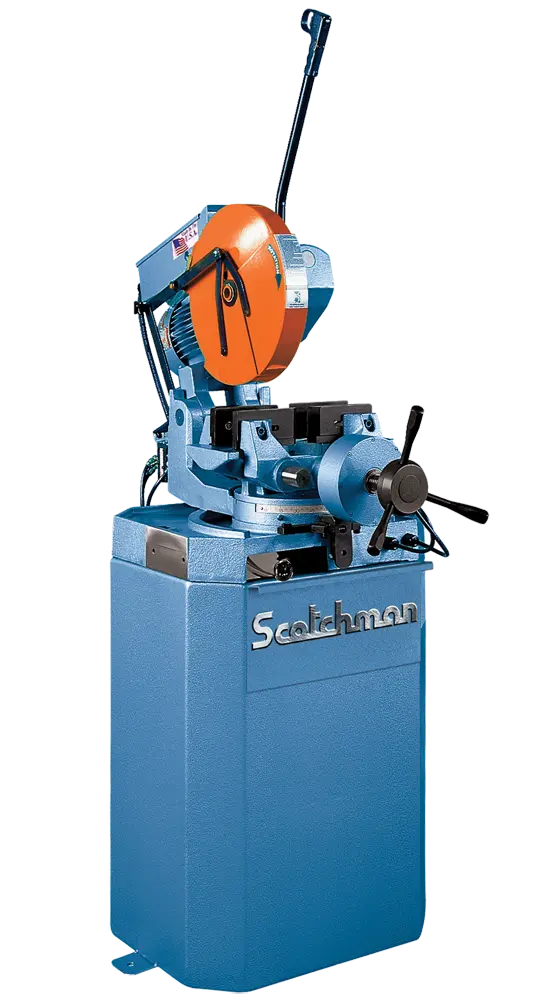

14″ MANUAL SAW WITH POWER VISE FOR MILD STEEL
Saw has an air-operated clamp for material vise & operator controlled trigger switch.
Product description
Air operated double self-centering vise assures burr-free cuts
Operator controlled trigger switch
Miter capabilities 45 degrees left to 45 degrees right
Miter locking device: Quick, accurate settings-stops at 45 degrees left, 90 degrees, and 45 degrees right
Capable of slotting
Double reduction, hardened and ground worm and wheel gear box
Chip drawer
7 Gallon flood coolant tank with pump
One 315 mm diameter HSS blade
One blade wrench
One gallon coolant
Complies with ANSI B11.10 safety standards
Warranty: Three years on parts
Made in USA
Cutting Speeds
(must specify when ordering): Motor rate:
3 hp
HT(High Turn) – designed for thin wall tube 0.060 wall thickness or thinner and non-ferrous material: Motor rate:
3 hp
VS (Variable Speed) ~ wired 230/460, 3-ph: Motor Rate:
5 hp
VS (Variable Speed) ~ wired 220, 1-ph: Motor Rate:
5 ph
SS (Single Speed) – designed for 220v 1ph applications: Motor Rate:
3 hp
Maximum Cutting Capacities
(based on mild steel): 45 Degree
4″ (102 mm)
3-3/4″ x 3-3/4″ (95 x 95 mm)
3-3/4″ x 3-3/4″ (95 x 95 mm)
SOLID
Round
Square: 45 Degree
1-1/2″ (38 mm)
1-1/2″ x 1-1/2″ (38 x 38 mm)
