This full-auto CNC saw features unlimited length settings, plus the first cut is always accurate! Easily program a quantity cut to a specific length OR program up to four separate lengths & part quantities to be cut in sequence.

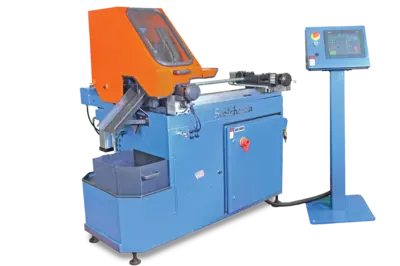

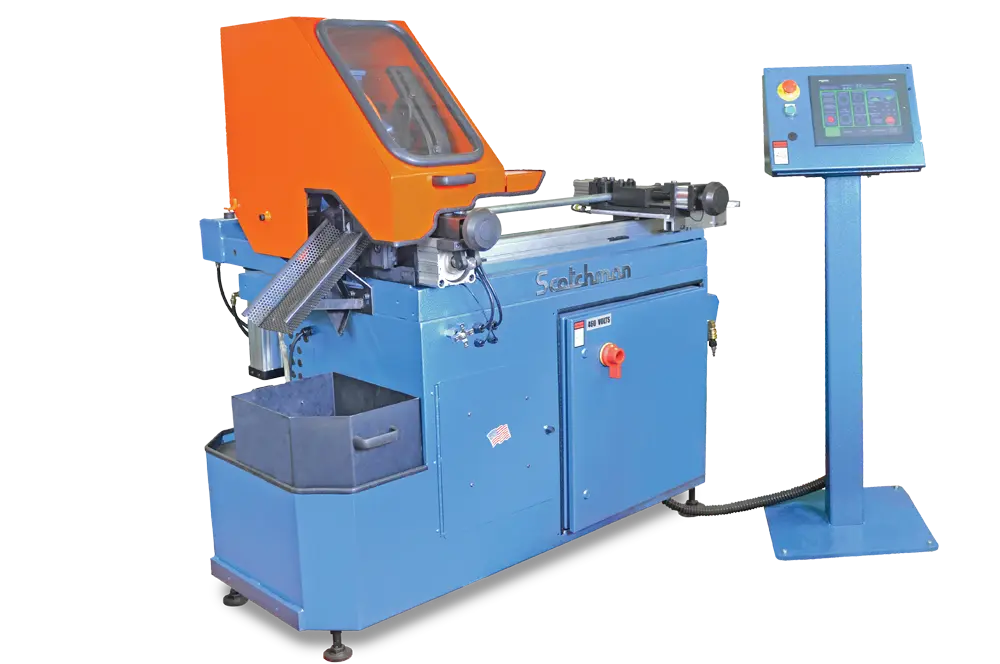

Increase productivity AND accuracy with this CNC saw! Scotchman’s CPO 315 Hitch Feed Automatic CNC Saw is a fully programmable circular cold saw with unlimited length settings and provides uninterrupted cutting on tubing or solids and delivers fast, accurate & clean cuts.
Using its 315mm blade, this saw delivers high quality, burr-free cuts on tube & pipe up to 3″ in diameter and solid material up to 1-3/4″, while maintaining a length tolerance of ±0.006″ per index and a squareness tolerance of ±0.002″ per diameter inch.
The CPO 315 HFA CNC is designed to enhance performance and features a large 10″ touch screen control, unlimited length settings with a 30″ single length shuttle, and a variable speed control. Easily program your quantity of pieces cut to a specific length OR program up to four separate lengths & part quantities to be cut in sequence; plus, the first part cut is always accurate!
This American made saw is dependable and built for industrial use. It’s available in ferrous and non-ferrous models and is always backed by our superior 2-year warranty and lifetime customer service.
Product description
Fully automatic cycle (available In ferrous or non-ferrous)
Touch screen controls
Precision CNC controlled
Interlocking safety hood
Emergency stop button
Clamping both sides of blade–highest quality, burr-free cuts
Blade guides for accurate tolerances (ferrous model)
Mist coolant lubrication system
Adjustable stroke control on the saw head
Adjustable down feed control on the saw head for feed rate
Adjustable indexing feed speeds
Program up to four separate cut lengths in each job
100 Program job storage
30″ Single shuttle length (unlimited shuttles)
Piece counter
One saw blade
One gallon coolant
Complies with ANSI B11.10 safety standards
Warranty: Two years on parts
Made in USA
Cutting Speeds
(must specify when ordering): Motor Rate:
5 hp
CPO 315 HFA CNC NF (non-ferrous): Motor Rate:
5 hp
