FULLY AUTOMATIC SAWING SYSTEM
Automatically run unlimited cut lists at 90° Available for ferrous and non-ferrous materials

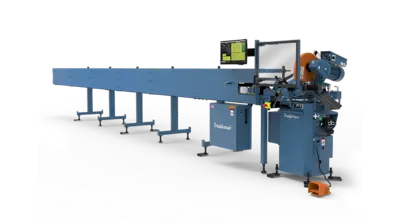

This auto loading circular cold saw is made to enhance performance. Our CPO 350 AutoLoader is a fully automatic sawing system guaranteed to save time, reduce scrap and eliminate costly mistakes. Automatically run unlimited cut lists at 90° OR miter cut in a semi-automatic mode; consistently producing accurate cut lengths within ±0.002 per dia. inch in squareness.
We’ve taken our trusted semi-automatic CPO 350 PKPD saw and added an automatic material loading system creating a fully automatic sawing system which can cut multiple lengths of tuve (max 3″ dia.). Available for ferrous and non-ferrous materials; this saw comes standard with a Windows® based touch screen control, 5ph variable rpm speed motor, 315mm diameter blade, and the ability to run unlimited cut lists from 1/2″ to 23′ lengths. Proudly made in the USA.
Product description
Fully automatic cycle or semi-automatic operation (available In ferrous or non-ferrous)
Pneumatic power down feed with electric controls
Adjustable stroke control
Adjustable down feed control on the saw head for feed rate
Air operated material vise clamp
Clamping on both sides of the blade
Fixed rear vise
Double reduction, hardened and ground worm and wheel gear box (ferrous model)
Chip drawer
Emergency stop button
Clear awareness barrier with safety interlock switch
Mist coolant lubrication system
Miter in one direction only (manually)
Semi-auto operation is standard for cutting miters
Automatic loading & trim cut of each new bar
Piece counter
Touch screen controls actuate the complete cycle
Windows base software (includes profile screen)
Unlimited job storage
Infeed table type: Bundle Loader or Supply Track
One saw blade
One gallon coolant
Complies with ANSI B11.10 safety standards
Warranty: Two years on parts (CPO saw)
Warranty: One year on parts (feed system)
Made in USA
Cutting Speeds
(must specify when ordering): Motor Rate:
5 hp
CPO 350 AutoLoader NF (non-ferrous): Motor Rate:
5 hp
Maximum Cutting Capacities
(based on mild steel): 45 Degree
2″ (51 mm)
2″ x 2″ (51 x 51 mm)
SOLID
Round: 45 Degree
1-1/2″ (38 mm)
Maximun Cutting Capacities (NF)
(Non-Ferrous & PVC ): 45 Degree
2″ (mm)
2″ x 2″ (51 x 51 mm)
Must Specify Infeed Table Type ↓: Must Specify Infeed Table Type ↓
