Saw has a Manual clamp for material vise & operator controlled trigger switch

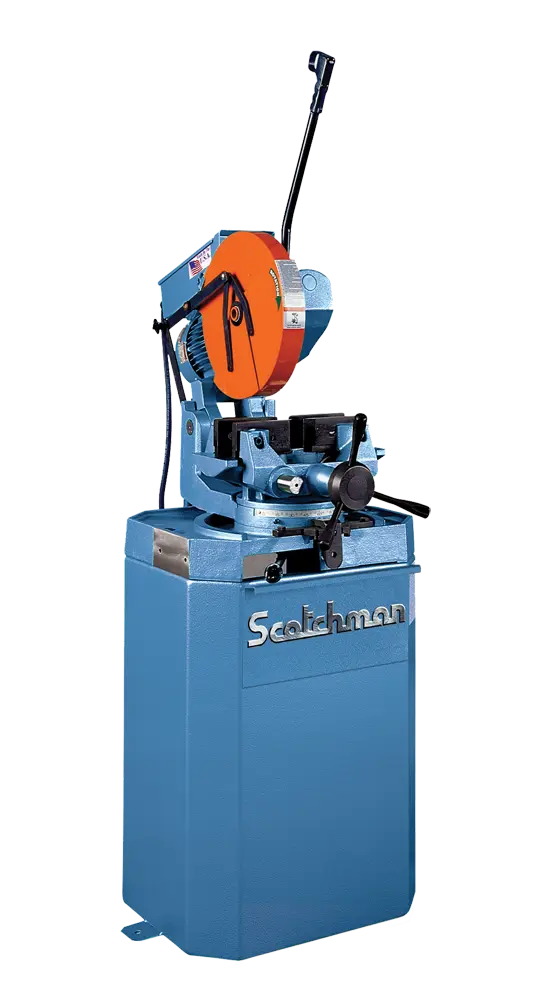

Scotchman Industries powerful American-made CPO 350 Circular Cold Saw is the perfect machine for any fabrication shop. This dependable saw features a double clamping and self-centering vise for maximum hold and provides burr-free, high quality, volume parts. It has 180 degree mitering ability and a miter-locking device which automatically stops at 45 degrees left, 90 degrees straight, and 45 degrees right, giving it the ability to slot and notch. Additional machine features include a chip drawer, a double reduction gearbox, a two-speed motor which utilizes up to a 350mm diameter blade giving it a 4-7/8″ OD round capacity. This machine is built with dependability and versatility in mind, with the quality you expect from a Scotchman. Always backed by their outstanding 3-Year Warranty!
Product description
Manual double self-centering vise assures burr-free cuts
Operator controlled trigger switch
Miter capabilities 45 degrees left to 45 degrees right
Miter locking device: Quick, accurate setting-stops at 45 degrees left, 90 degrees, and 45 degrees right
Capable of slotting
Double reduction, hardened and ground worm and wheel gear box
Chip drawer
7 Gallon flood coolant tank with pump
One 315 mm diameter HSS blade
One blade wrench
One gallon coolant
Complies with ANSI B11.10 safety standards
Warranty: Three years on parts
Made in USA
Cutting Speeds
(must specify): Motor rate:
3 hp
HT – designed for thin wall tube 0.060 wall thickness or thinner and non-ferrous material: Motor rate:
3 hp
VS – Variable Speed allows for cutting a variety of materials: Motor Rate:
5 hp
SS – designed for 220v 1ph applications: Motor Rate:
3 hp
Max. Cutting Capacities
(based on mild steel): 45 Degree
4″
3-3/4″x3-3/4″
3-3/4″x3-3/4″
SOLID
Round
Square: 45 Degree
1-1/2″
1-1/2″x1-1/2″
Motor Options
(Factory Wired)
Must Specify Voltage: SS:
220v, 1ph
