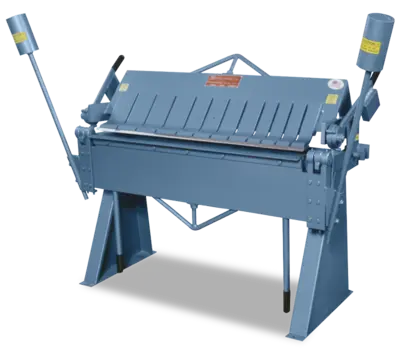

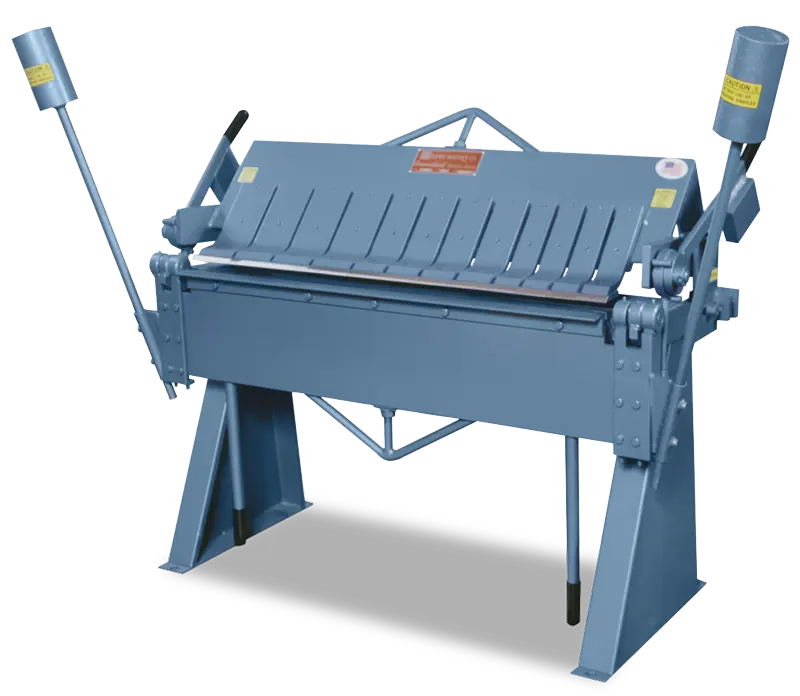

Connecticut Series

Connecticut Series box and pan brakes are an economically-priced solution for your bending needs and will provide years of trouble-free service.
Product description

Capacity with bending bar/angle in place, Mild Steel – 1″ Flange: 16 Gauge
1.6 mm
Capacity with bending angle removed, Mild Steel – 1″ Flange: 20 Gauge
1.0 mm
Capacity with bending bar/angle removed, Mild Steel – 1″ Flange: 24 Gauge
0.61 mm
Bending Length: 72 in.
1830 mm
Maximum Lift Of Beam: 1-5/8 in.
41 mm
Front To Rear Beam Adjustment: 1-1/8 in.
28.5 mm
Minimum Reverse Bend (bar and angle removed): 1/4 in.
6 mm
Minimum Flange In Capacity Material: 1 in.
25 mm
Dimensions (counterweights in place): 96 x 48 x 72 in.
2439 x 1219 x 1829 mm
Shipping Weight: 1800 lbs.
820 kg
