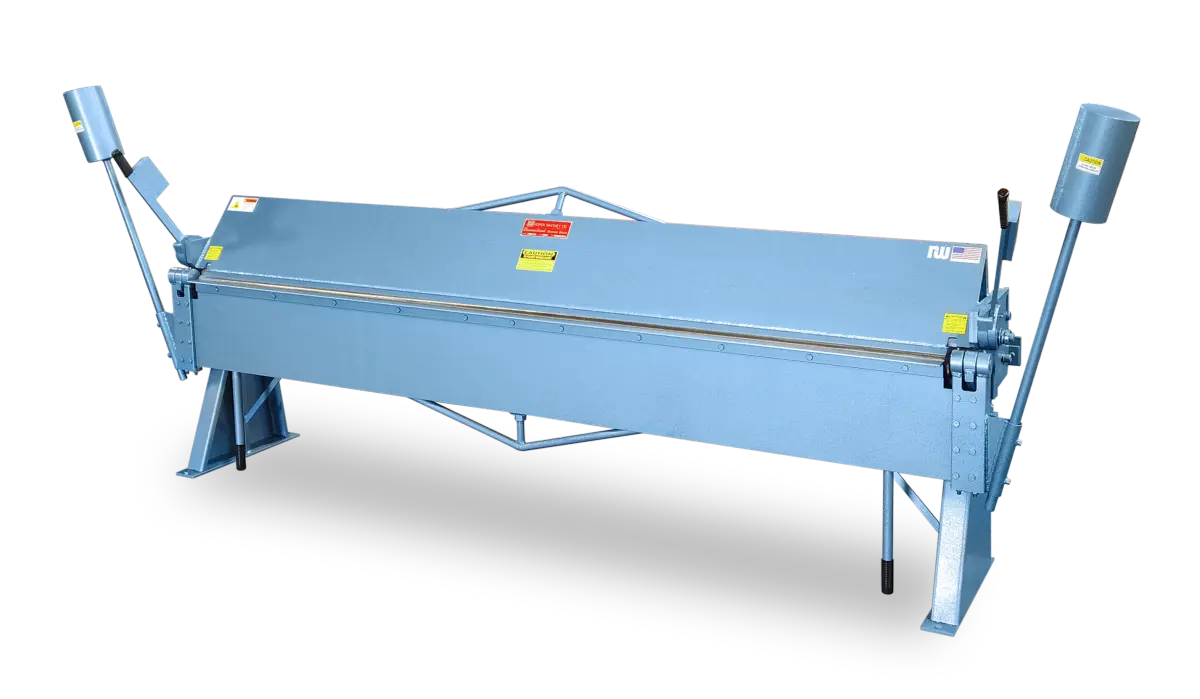

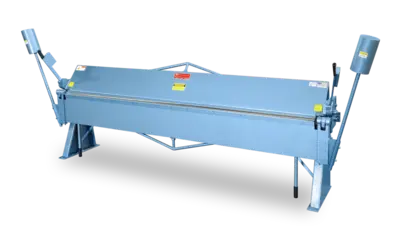

Connecticut Series

Connecticut Series floor-mounted manual bending brakes are precision machines designed for accurate bending within rated capacities.
Product description
All Connecticut bending brakes have positive clamping pressure adjustment, apron stop rods for repeat bends, long handles for extra leverage, work support angle bar for full capacity 1-inch minimum flange, Improved leg design for lighter weight, all steel construction – no castings, heavy tie rods for minimum deflection, removable bending bar and angle, adjustable apron hinges and a positive rear material gauge adjustment. Connecticut Series hand brakes are an economically-priced solution for your bending needs and will provide years of trouble-free service.
Positive clamping pressure adjustment
Apron stop rod for repeat bends
Long handles for extra leverage
Work support angle bar for full capacity
1-inch minimum flange
Improved leg design for lighter weight
All-steel construction
Heavy tie rods for minimum deflection
Removable bending bar and angle
Adjustable apron hinges
Positive rear material gauge adjustment

Capacity with bending bar/angle in place, Mild Steel – 1″ Flange: 14 Gauge
2.00mm
Capacity with bending angle removed, Mild Steel – 1″ Flange: 18 Gauge
1.25 mm
Capacity with bending bar/angle removed, Mild Steel – 1″ Flange: 22 Gauge
0.76 mm
Bending Length: 121 in.
3073 mm
Maximum Lift Of Beam: 1-5/8 in.
57 mm
Front To Rear Beam Adjustment: 1-3/8 in.
36.0 mm
Minimum Reverse Bend (bar and angle removed): 1/4 in.
6 mm
Minimum Flange In Capacity Material: 1 in.
25 mm
Dimensions (counterweights in place): 161 x 53 x 60 in.
4090 x 1347 x 1524 mm
Shipping Weight: 2960 lbs.
1343 kg
