MANUAL NOTCHER
Low investment, simple and fast operation, suitable for multiple diameters and ideal for double corner joints.

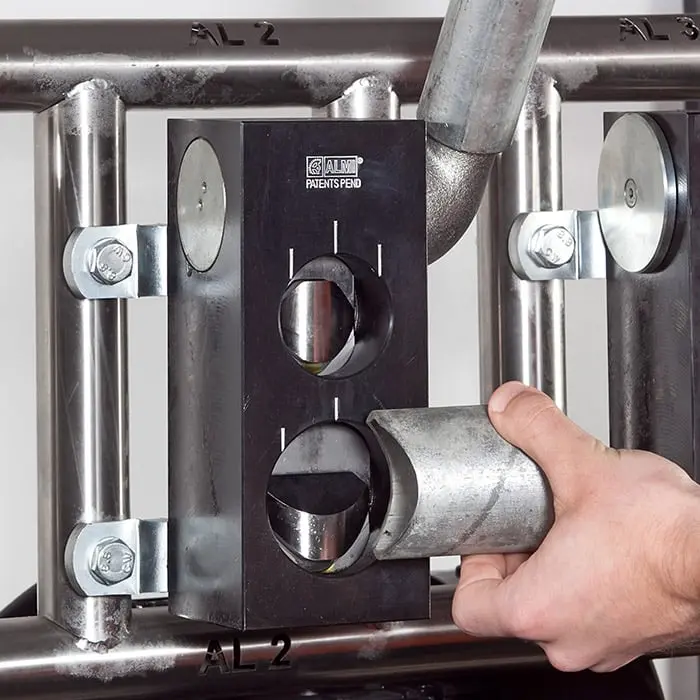

The AL2 can be used to notch 1-1/2″ and 2″ Schedule 40 Pipe at 90°.
This hand-operated machine can easily be mounted to the wall, and is perfect for double corner joints. Each piece is quickly and accurately notched and produces a gap-free fit ready for welding. Simply insert a pipe into the die block, pull the handle downward, a perfect 90 degree notch every time!
Product description
Notches 1-1/2″ and 2″ schedule 40 pipe
Portable and easy to mount to any stationary surface
Manual operation
Requires no change-over or costly attachments
Warranty: Three years on parts
Manufactured in the Netherlands
O.D. Pipe Sizes: 1-1/2″ and 2″; Schedule 40
Max. Wall Thickness: 0.154″ steel
0.098″ stainless steel
Profile Applications: Round Tube & Pipe
Weight: 33 lbs (14 kg)
