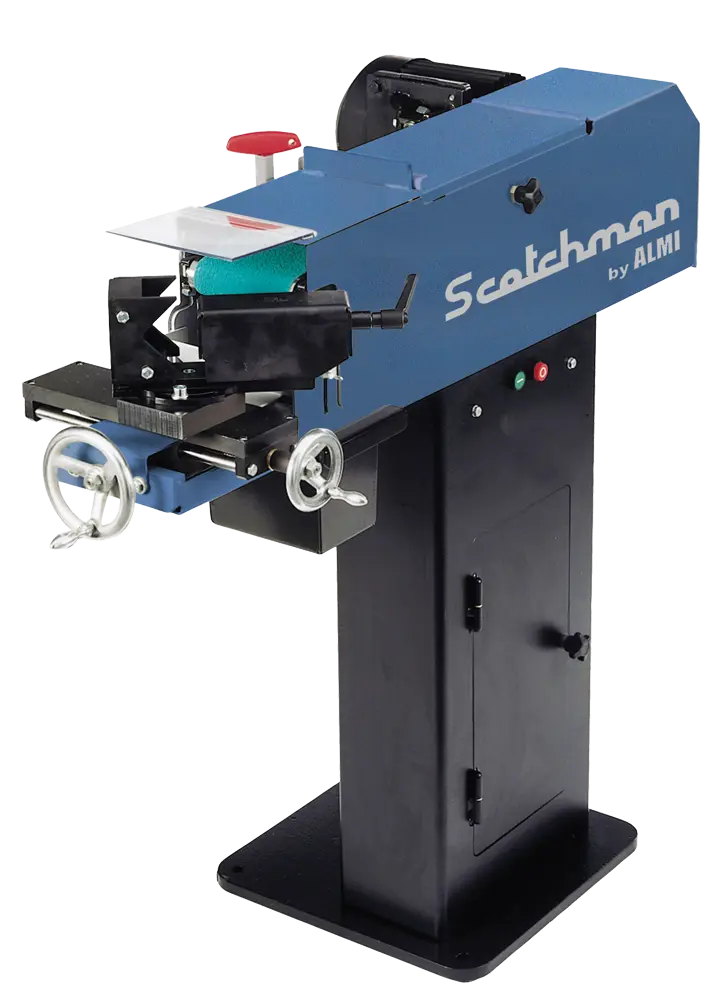

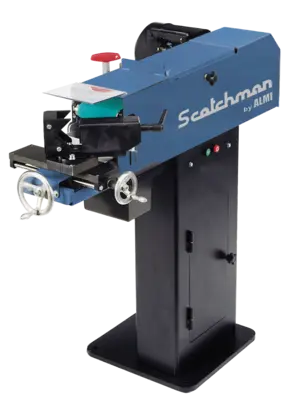

ABRASIVE GRINDER/NOTCHER
Produces gap-free fits ready for welding
Grinds notches of any desired angle from 90 degrees to 20 degrees in seconds
Smooth operation with minimal vibration
Two axis precision crossfeed table with both handwheels and hand lever feed handle
Heavy duty frame and base construction
Base has one built-in rack to store mandrels
Mandrel centerline adjustment
One vise holds all pipe and tube sizes
Top-mounted deburring surface creates a multifunctional machine
Easy setup with vise graduated in degrees
17 Mandrel sizes available to ensure correct gap-free fits
Supplied with 2 belts and two pipe mandrels (1-1/4″ & 1-1/2″)
Tool-free belt and mandrel change over for easy transition
Warranty: Three years on parts
Manufactured in the Netherlands
Product description
Grinding Capacity: 12.7 mm to 114 mm
Belt: 150 mm x 2,000 mm
Dimensions (L x W x H): 145 cm x 120 cm x 85 cm
Shipping Weight (may vary): 279 kg
