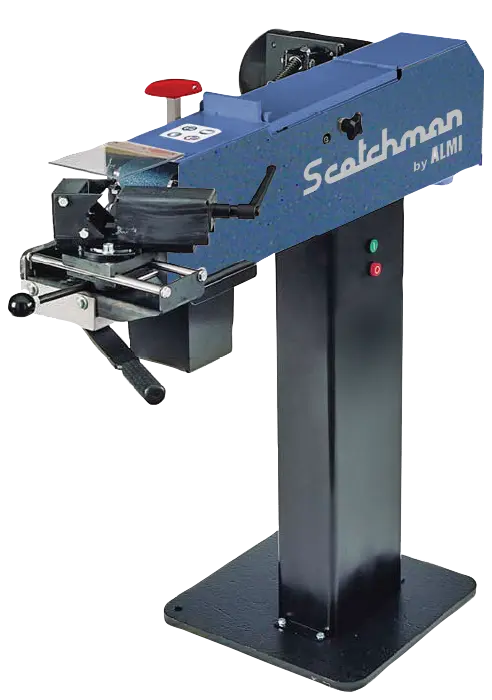

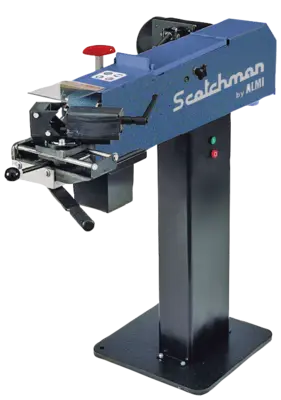

ABRASIVE GRINDER/NOTCHER
The AL100U-01 produces gap-free fits ready for welding, with minimal vibration. It is equipped with a hand lever feed handle & manual vise that can be adjusted right or left.
Product description
Grinds notches of any desired angle from 90 degrees to 30 degrees in seconds
Operated with hand lever feed handle and manual vise adjustment left and right
Smooth operation with minimal vibration
Heavy duty frame and base construction
Mandrel centerline adjustment
One vise holds all pipe and tube sizes
Top-mounted deburring surface creates a multifunctional machine
Easy setup with vise graduated in degrees
13 Mandrel sizes available to ensure a correct gap-free fit
Supplied with 2 belts and two pipe mandrels (1-1/4″ & 1-1/2″)
Tool-free belt and mandrel change over for easy transition
Warranty: Three years on parts
Manufactured in the Netherlands
Grinding Capacity: 12.7 mm to 76 mm
Belt: 100 mm x 2,000 mm
Dimensions (L x W x H): 145 cm x 115 cm x 65 cm
Shipping Weight (may vary): 209 kg
