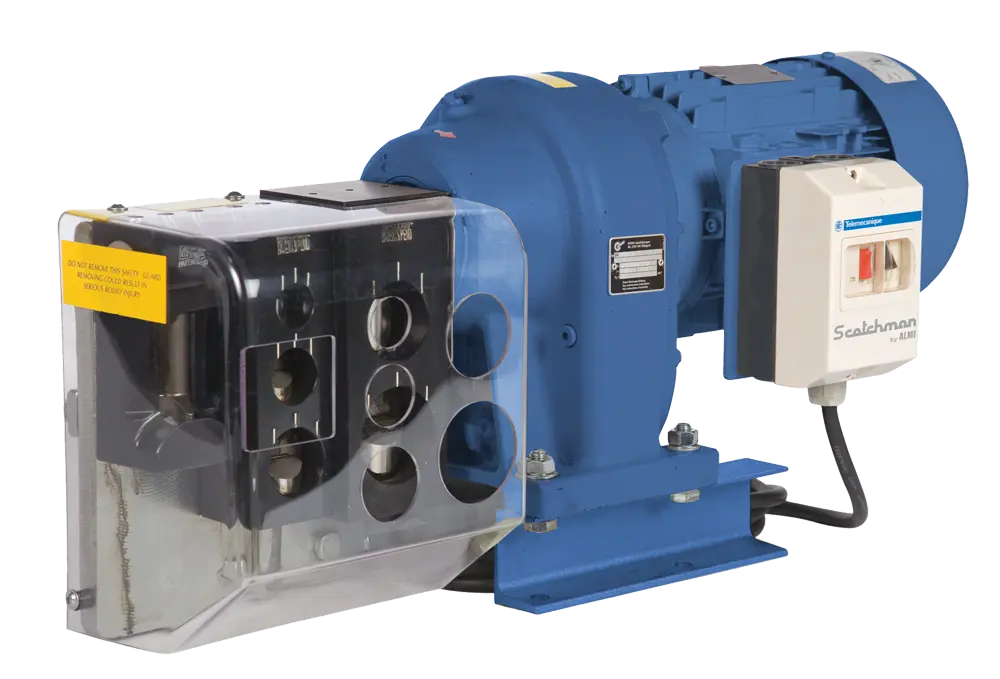

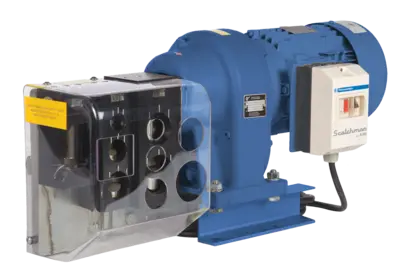

ELECTRIC NOTCHER
Powered combination of AL1, AL2 & ALU notchers for a perfect & quick 90 degree notch or vent notch.
Can notch 3/4″, 1″, 1-1/4″, 1-1/2″ and 2″ up to schedule 40 wall thickness; plus it’s equipped with a vent notch to quickly create a uniform vent-notch for galvanizing outflow.
Product description
Equipped to notch 3/4″, 1″, 1-1/4″, 1-1/2″ and 2″ up to schedule 40 wall thickness
Includes vent notcher to quickly create a uniform vent-notch for galvanizing outflow
Safety guards to surround and protect notching dies
Electric operation
Warranty: Three years on parts
Manufactured in the Netherlands
Max. Wall Thickness: 5 mm steel
3 mm stainless steel
Motor: 2.2 kW
Dimensions (L x W x H): 762 mm x 343 mm x 292 mm
Shipping Weight: 104 kg
