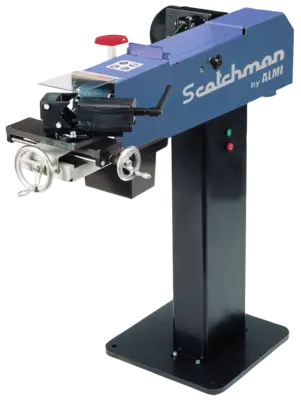

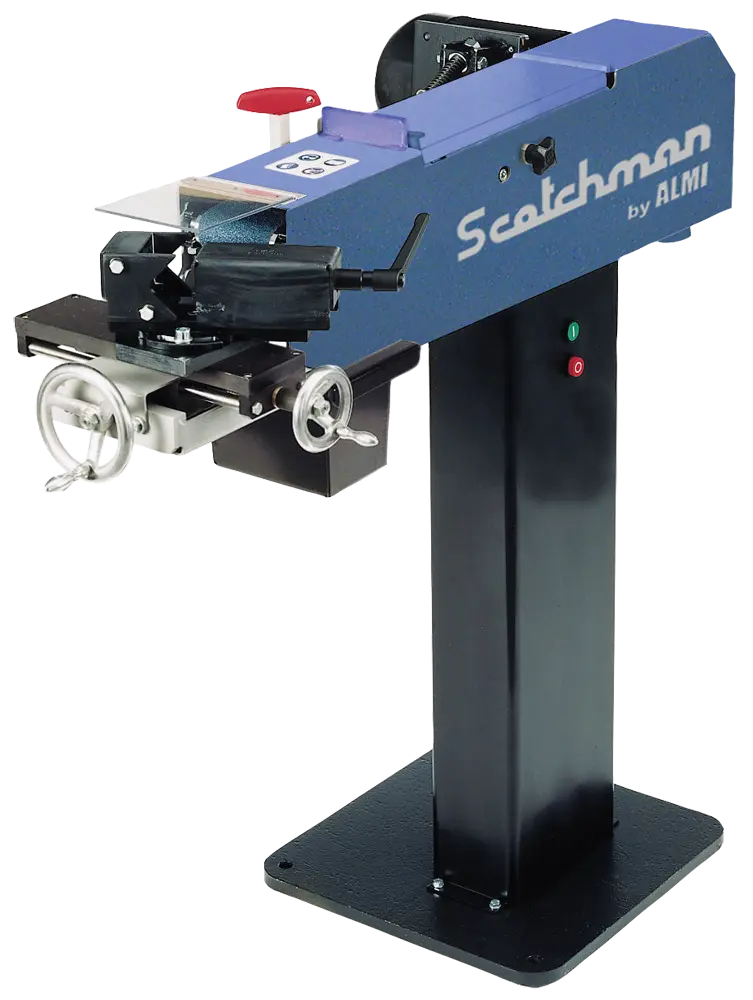

ABRASIVE GRINDER/NOTCHER
Product description
Grinds notches of any desired angle from 90 degrees to 30 degrees in seconds
Two Axis precision crossfeed table with both handwheels and hand lever feed handle
Smooth operation with minimal vibration
Heavy duty frame and base construction
Mandrel centerline adjustment
One vise holds all pipe and tube sizes
Top-mounted deburring surface creates a multifunctional machine
Easy setup with vise graduated in degrees
13 Mandrel sizes available to ensure a correct gap-free fit
Supplied with 2 belts and two pipe mandrels (1-1/4″ & 1-1/2″)
Tool-free belt and mandrel change over for easy transition
Warranty: Three years on parts
Manufactured in the Netherlands
Grinding Capacity: 12.7 mm to 76 mm
Belt: 100 mm x 2,000 mm
Dimensions (L x W x H): 145 cm x 115 cm x 65 cm
Shipping Weight (may vary): 209 kg
