Single Operator
Product description

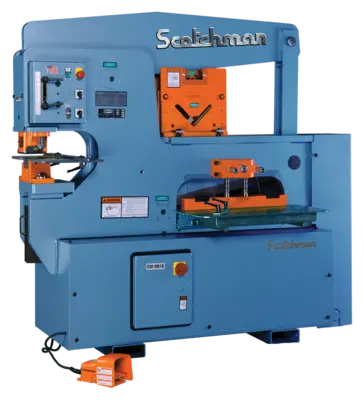

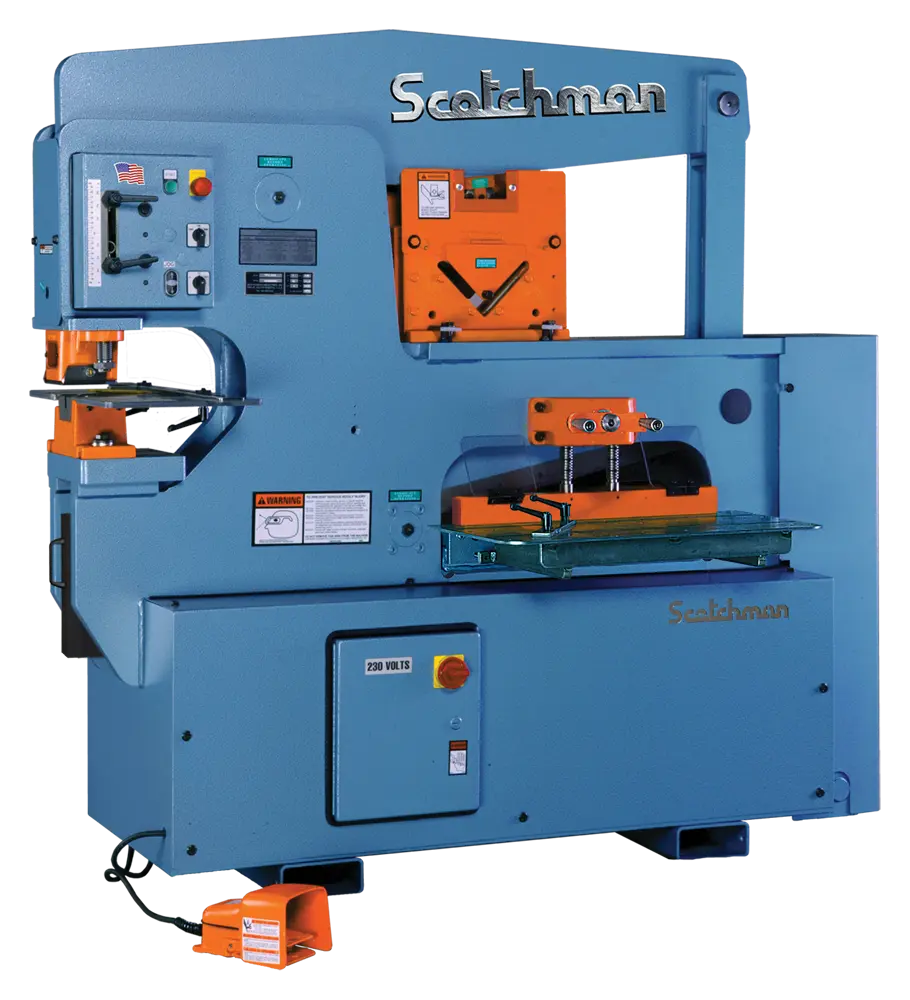

Single Operator, 4 Stations
90 Ton punch station
Keyed punch ram for safety
Punch gauging table with fence and scale
Die holder complete with 2″ die insert
Punch nut with wrench & stripper
One round punch & die: max. diameter 1-1/4″
Jog control
Adjustable electric stroke control with scale
Electric remote foot pedal
Angle shear
Flat bar shear with 4-way reversible blade
Shear table with miter fence
Tool table work area
Slug receptacle
Two-stage hydraulic pump
Electrical box supplied with emergency palm button and lock-out tag-out accommodations
All guards necessary to comply with ANSI B11.5 safety standards
Forklift accommodations
Warranty: Three years on parts
Made in USA
Punching Capacity: 80 mt
29 mm in 25 mm
Special Tooling: 102 mm Max. Dia.
Throat Depth: 305 mm
Flat Bar Shear: 610 mm
25 mm x 203 mm
19 mm x 305 mm
12 mm x 406 mm
6 mm x 610 mm
Saber Blade (optional): 12 mm x 559 mm
10 mm x 610 mm
Angle Shear 90 degree: 152 mm x 152 mm x 12 mm
Angle Shear 45 degree
w/Tool
w/Bar Shear: 76 mm x 76 mm x 10 mm
102 mm x 102 mm x 12 mm
Brake 12″: 45 mt
Brake 24″: 36 mt
Open End Brake: 6 mm x 127 mm
Rectangle Notcher: 51 mm x 63 mm x 10 mm
90 degree V-Notcher: 152 mm x 152 mm x 8 mm
Channel Shear: 51 mm to 152 mm adj.
Rod Shear
Round (max.)
Square (max.): 6 mm to 32 mm
6 mm to 25 mm
Square Tube Shear: 12 mm to 51 mm
0.105″ / 2.7 mm
Picket Tool: 12 mm, 19 mm, 25 mm
0.06″ / 1.5 mm
Weld Coupon Bender (max.): 51 mm x 10 mm
Offset Die Holder: Max. 36 mt
Strokes per Minute in Light Material: 1/4″ Stroke
Strokes per Minute in Heavy Material: 3/4″ Stroke
Hydraulics: 179 bar
Motor Standard: 3.73 kW
Motor Optional: 3.73 kW
Dimensions: L: 195 cm
W: 79 cm
H: 181.5 cm
Shipping Weight (may vary): 1,907 kg
