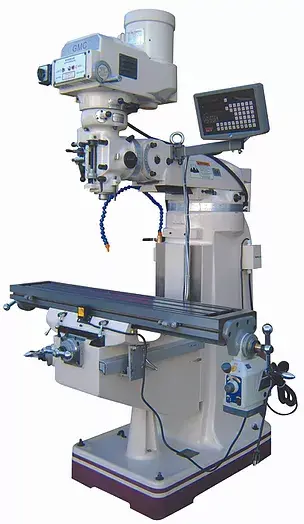

9″ x 49″ Vertical Mill | Metal Milling Machine with 2-Axis DRO

Our 9″ x 49″ metal milling machine aka vertical milling machines come fully equipped with a SINO digital readout and power feed. Our mill machines are rigid, made of “Meehanite” casting; hardened and grounded dovetail guideways. If you’re looking to add a long lasting piece of equipment to your machine shop, this is it. These vertical mills are made to last and we provide parts and service to reduce or eliminate downtime.
Product description

Table Size
Table Load Capacity: 9″ x 49″
650 lbs.
X Axis Travel
X Travel with Power Feed
Y Axis Travel
Z Axis Travel: 35 1/2″
31 1/2″
12″
17″
Spindle Taper Type
AC Spindle Motor
Spindle Speeds

Quill (spindle) diameter: R8
3 HP, 220V/10A – 440V/5A
70-4,300 RPM (variable speeds)

3 3/8″
Quill (spindle) travel: 5″
Ram Travel: 12″
Table T-Slot Size: 5/8″ x 3 slots
Head Swivel, R/H, L/H
Net weight: 90 degree
2,650 lbs.
