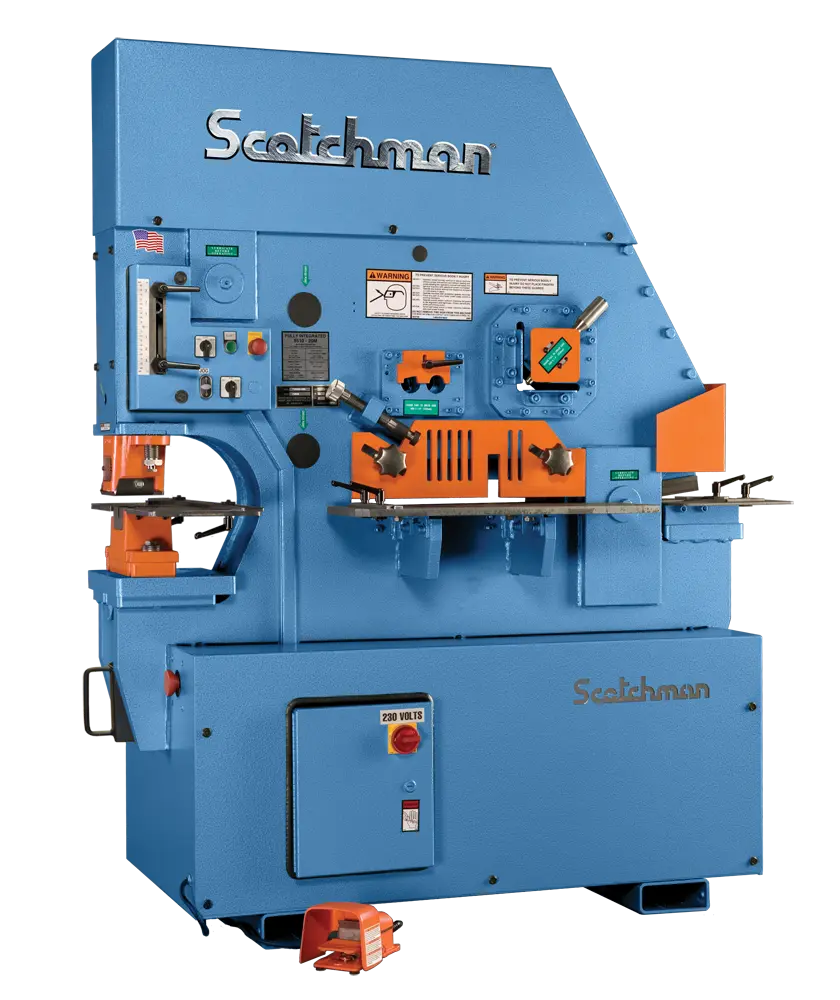

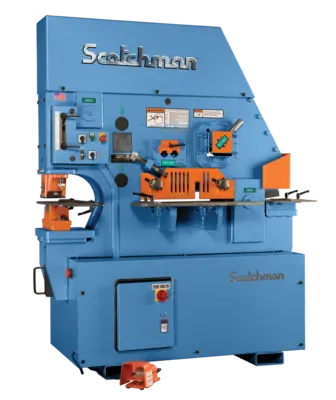

85 Ton Ironworker FI8510-20M

Fully Integrated Single Operator
Product description
Single Operator, 5 Stations
85 Ton punch station
Keyed punch ram for safety
Punch gauging table with fence and scale
Die holder complete with 2″ die insert
Punch nut with wrench & stripper
Adjustable swing-away stripper
One round punch & die: max. diameter 1-1/4″
Punch jog control
Adjustable electric stroke control with scale
Electric remote foot pedal
Slug-less angle shear
Flat bar shear
Shear table with miter fence
Rod shear
Slug receptacles
Rectangle notcher with table, scale and guide
Two-stage hydraulic pump
Electrical box supplied with emergency palm button and lock-out tag-out accommodations
All guards necessary to comply with ANSI B11.5 safety standards
Forklift accommodations
Warranty: Three years on parts
Made in USA

Punching Capacity: 77 mt
27 mm in 25 mm
Special Tooling: 102 mm Max. Dia.
Throat Depth: 254 mm
Flat Bar Shear: 508 mm
25 mm x 305 mm
19 mm x 508 mm
Angle Shear 90 degree: 152 mm x 152 mm x 12 mm
Angle Shear 45 degree
(w/Bar Shear): 102 mm x 102 mm x 12 mm
Brake 12″: 77 mt
Brake 24″: 77 mt
Open End Brake: 6 mm x 127 mm
Rectangle Notcher: 76 mm x 127 mm x 12 mm
90 degree V-Notcher
(Punch Station): 152 mm x 152 mm x 8 mm
Channel Shear: 51 mm to 152 mm adj.
Rod Shear
Round (max.)
Square (max.): 38 mm
32 mm
Square Tube Shear: 12 mm to 51 mm
0.105″ / 2.7 mm
Picket Tool: 12 mm, 19 mm, 25 mm
0.06″ / 1.5 mm
Weld Coupon Bender (max.): 51 mm x 10 mm
Offset Die Holder: Max. 36 mt
Strokes per Minute in Light Material: 1/4″ Stroke
Strokes per Minute in Heavy Material: 3/4″ Stroke
Hydraulics: 179 bar
Motor Standard: 3.76 kW
Motor Optional: 3.76 kW
Dimensions: L: 172 cm
W: 81.5 cm
H: 198 cm
Shipping Weight (may vary): 2,066 kg
