Fully Integrated Single Operator
Product description

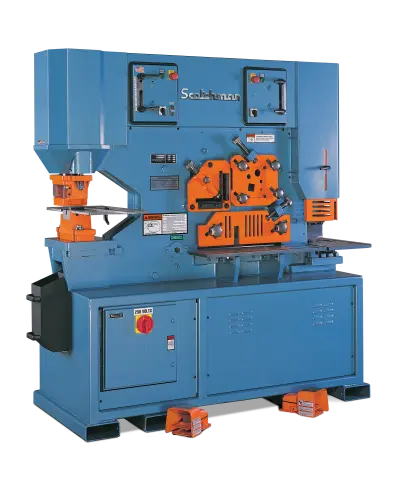

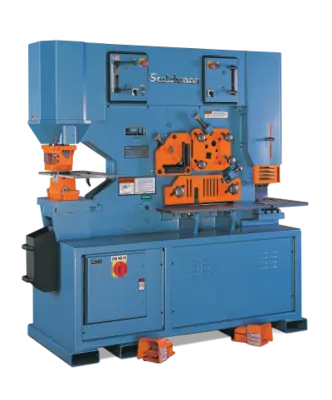

Dual Operator, 5 Stations
Dual operator allows for two operators to work at the same time at full capacity
85 Ton punch station
Keyed punch ram for safety
Punch gauging table with fence and scale
Die holder complete with 2″ die insert
Punch nut with wrench & stripper
Adjustable swing-away stripper
One round punch & die: max. diameter 1-1/4″
Punch jog control
Two adjustable electric stroke controls with scale
Two electric remote foot pedals
Tandem Hydraulic Pump
Two valves
Slug-less angle shear
Rectangle notcher: can be converted to a V-notcher, 50 ton punch station, or open end brake
Flat bar shear
Shear table with miter fence
Rod shear
Slug receptacles
Electrical box supplied with emergency palm button and lock-out tag-out accommodations
All guards necessary to comply with ANSI B11.5 safety standards
Forklift accommodations
Warranty: Three years on parts
Made in USA
Punching Capacity: 77 mt
27 mm in 25 mm
Special Tooling: 102 mm Max. Dia.
Throat Depth: 355 mm
Flat Bar Shear: 508 mm
25 mm x 355 mm
19 mm x 508 mm
Angle Shear 90 degree: 152 mm x 152 mm x 12 mm
Angle Shear 45 degree
(w/Bar Shear): 102 mm x 102 mm x 12 mm
Brake 12″: 77 mt
Brake 24″: 77 mt
Open End Brake
(Notcher Station): 12 mm x 152 mm
Open End Brake
(Punch Station): 6 mm x 127 mm
Rectangle Notcher: 51 mm x 101 mm x 12 mm
90 degree V-Notcher
(Punch Station): 152 mm x 152 mm x 8 mm
90 degree V-Notcher
(Notcher Station): 76 mm x 76 mm x 12 mm
Punch Attachment
(Notcher Station): 32 mm in 12 mm
Throat Depth w/Punch Attachment
(Notcher Station): 113 mm
Channel Shear: 51 mm to 152 mm
Rod Shear
Round (max.)
Square (max.): 12 mm, 19 mm, 25 mm, 38 mm
38 mm
Square Tube Shear: 12 mm to 51 mm
0.105″ / 2.7 mm
Picket Tool: 12 mm, 19 mm, 25 mm
0.06″ / 1.5 mm
Weld Coupon Bender (max.): 51 mm x 10 mm
Offset Die Holder: Max. 36 mt
Strokes per Minute in Light Material: 1/4″ Stroke
Strokes per Minute in Heavy Material: 3/4″ Stroke
Hydraulics: 231/262 bar
Motor Standard: 7.46 kW
Motor Optional: 7.46 kW
Dimensions: L: 197 cm
W: 82 cm
H: 188 cm
Shipping Weight (may vary): 2,497 kg
