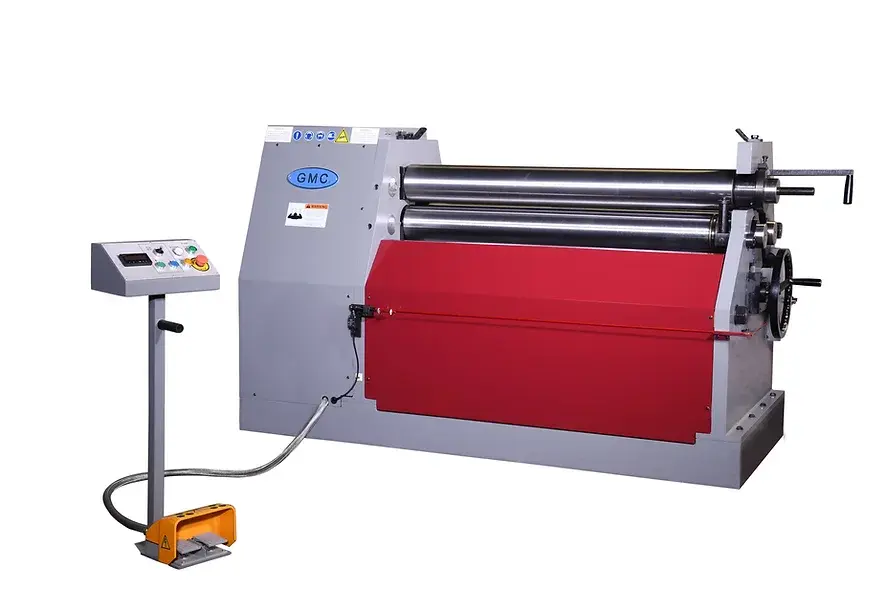

8′ x 8 gauge Plate Rolls – Metal Rolling Machines

Our HBR-0808, 8 foot plate rolls are made for bending and rolling 8 gauge metal sheets or plates into cones and other cylindrical shapes. All three rolls are hydraulic driven, hardened, and made of high grade alloy steel. Equipped with a cone attachment, LED digital readout, operation pedal controls safety line, and a quiet hydraulic system.
Product description

Roll Capacity:
Mild Steel: 8′ x 8Ga.
Stainless Steel: 8’ x 12Ga.
Min. Roll dia.: 7 1/2″
Rolls Length: 8′ 4″
Rolls Dia.: 6 1/2″
Pre-bend: 0.12″
Rolls speed: 3.5 RPM
Rolls Opening: 2 1/32″
Oil Tank Cap.: 245L = 12 Gal
Main Motor: 7 1/2 HP
Weigth: 8,150 lbs.
Dimensions: 142″ x 38″ x 58″
