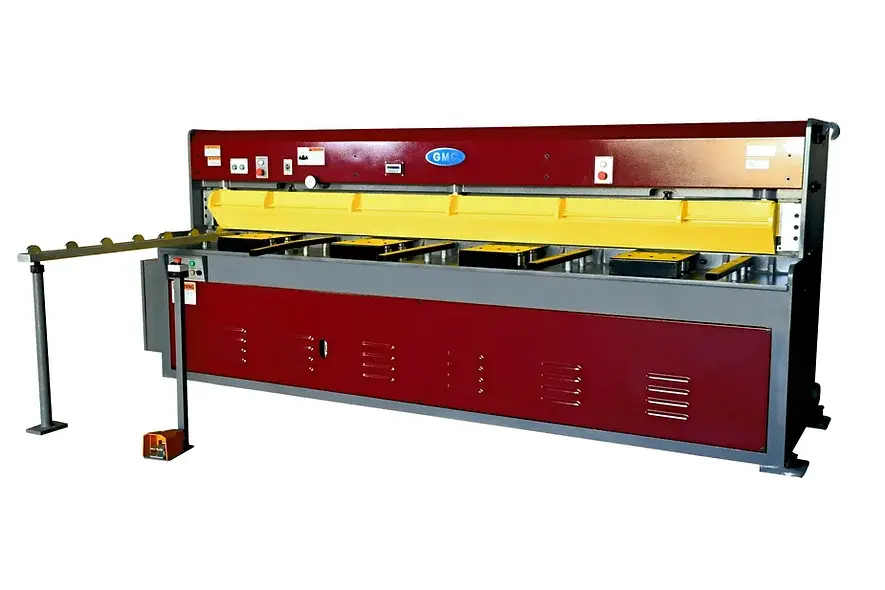

8′ x 1/4″ Hydraulic Plate Shear | Shearing Machine

This 96″ wide hydraulic shear can handle up to a 1/4″ mild steel. This heavy duty machine will trim 8 foot sheets with ease!
ISO 9001 certified
Taiwan machines
36” German SIKO Front Operated power back gauge w/ micro adjustment 0.004” , inch/mm digital display
Quick Change Blade Gap Adjustment (BGA), with gap dial
CE standard “OMERO” electric control system
Meet OSHA safety standard code
Shadow line for accurate straight cutting
Adjustable cutting length and stroke
Ball transfer plates on worktable for easy loading workpiece
Well balanced and sturdy all steel machine frame
German made Hydraulic logic system centrally located and quiet
Hydraulic hold-downs with anti-mar neoprene
Shear blades are high grade carbon/chrome alloy steel and hardened
to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
Full length viewable safety finger guard to protect operator from cutting hazard
Removable safety foot pedal, automatic blade raise up on removal of foot from  pedal
Hydraulic, electrical overload protection
Compact operator control panel
All motors are overload protected & low voltage control system
Jog or continuous auto cycle cutting operation modes
One year industrial warranty for parts
Product description

Cutting capacity:
Mild steel
Stainless steel: 8’ x 1/4″
8’ x 10 Ga.
Blade length: 8′ 2″ = 98″
Strokes per minute: 10-15
Throat depth: 18″
Worktable height: 34 1/2″
Front support arm: 24″
Back gauge: 36″ SIKO powered B.G.
Blade rake angle: 2 degree
Oil tank cap.: 32 Gal
Main Motor

Powered B.G. Motor: 20 HP, 220V/70A – 440V/35A, 3 Phase

1 HP, 220V/440V, 3 Phase
Machine weight: 12,850 LBS
Machine dimensions: 157″ x 99″ x 65″
