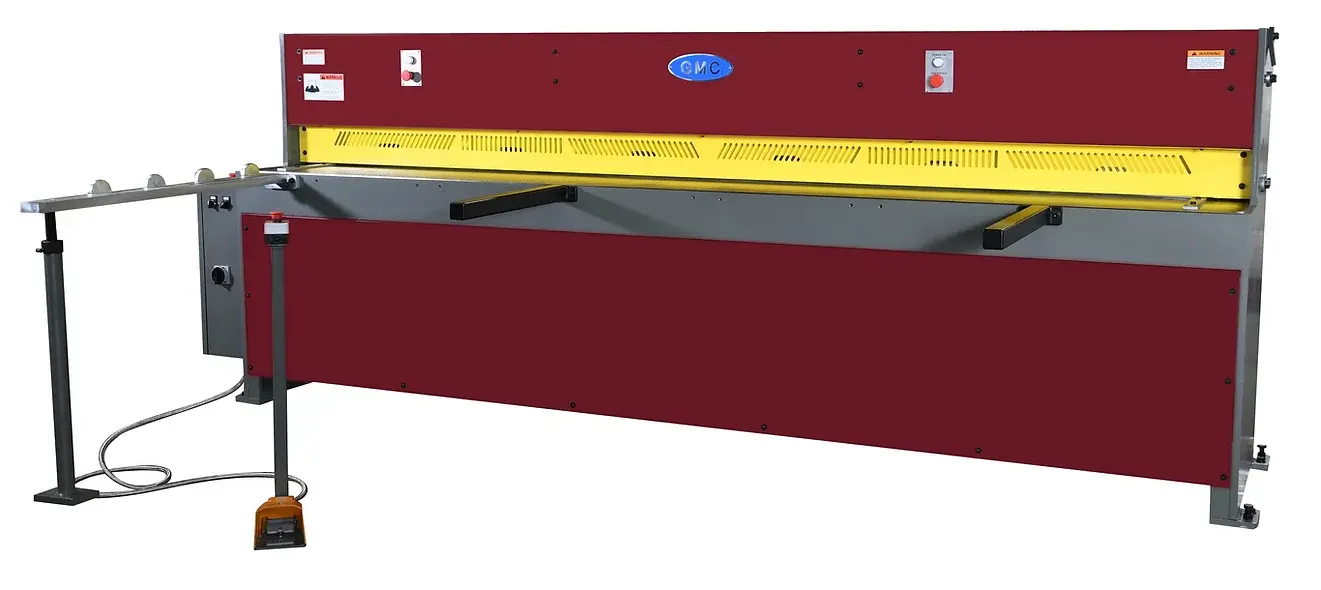

8′ x 10 Ga. Mechanical Shear – Shearing Machines

Shop our 8 foot mechanical shears that are capable of cutting up to 10 gauge mild steel and 14 gauge stainless. Our sheering machines are designed as a low maintenance design with an array of features that will add value to any machine shop.
ISO 9001 certified
American design and Taiwan quality machine
HD all steel construction for maximum rigidity
Precision driven gearbox
Full length 26 strokes per minute
60” long squaring arm with inch / mm scale
Spring hold-downs
High grade carbon/chrome alloy steel blades and hardened to 62 hrc,
2-edge indexable upper blade and 4-edge indexable bottom blade
Full length with full view finger guard
Front supports and (2) side gauges
Safety type foot pedal control
Jog, single continuous auto operation modes
One year warranty for parts
Product description

Cutting Capacity
Mild Steel – HRS (tensile 60,000 PSI)
Stainless Steel (tensile 85,000 PSI)
Soft Aluminum (tensile 28,000 PSI): 8′ x 10Ga.
8′ x 14Ga.
8′ x 1/4″
Blade Lenght: 98″
Strokes per minute: 26
Worktable height: 32″
Front support arm: 36″
Back gauge: 26″ Manual Back gauge
Blade Rake Angle: 2.5 Degree
Main Motor: 7 1/2HP, 3 Phase 25A
Prewired: 220VAC
(15A/440VAC optional)
Machine weight
Shipping weight: 6,650 lbs.
6,750 lbs.
Machine dimensions
Shipping dimensions: 124″ x 43″ x 68″
126″ x 43″ x 67″
