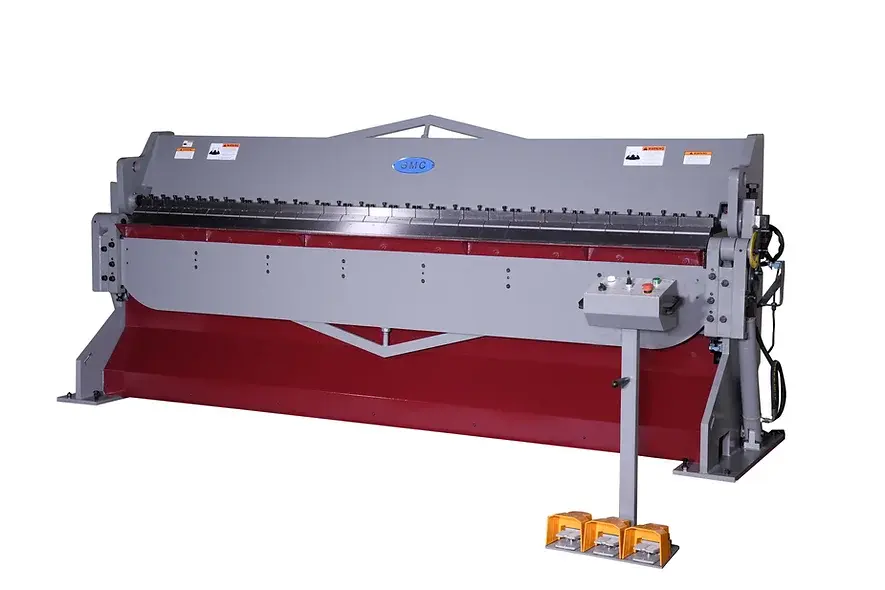

8 ft Sheet Metal Brake | Box and Pan Brake
Overview
Description
Our 8 ft Sheet Metal Brake is a heavy duty hydraulic box and pan brake; constructed of steel for maximum rigidity. Equipped with a robust and quiet German Rexroth hydraulic logic system to clamp your workpiece with ease. Our box and pan brakes are made for simple operation with a conveniently located control panel to place on either side of the hydraulic brake.
Product description
Specifications
Max Bending Length:: 8’
Bending Capacity:
Mild Steel
Stainless Steel: 10 Ga.
12 Ga.
Hemming max thickness:: 24 Ga.
Bend Degree:: 135
Max. Box Depth:: 6″
Large Beam Opening:: 3″
Manual Back Gauge:: 26”
Oil Tank Capacity:: 34 Gal.
Hydraulic Oil:: Shell #68 or equivalent
Main Motor: 7.5 HP 3 Phase
Prewired: 220VAC 20A
Optional: 440VAC 10A
Weight: 6,650 lbs.
Shipping Weight:: 6,600 lbs.
Overall Dimensions: 115″ x 46″ x 69″
Shipping Dimensions:: 127” x 41” x 67”
