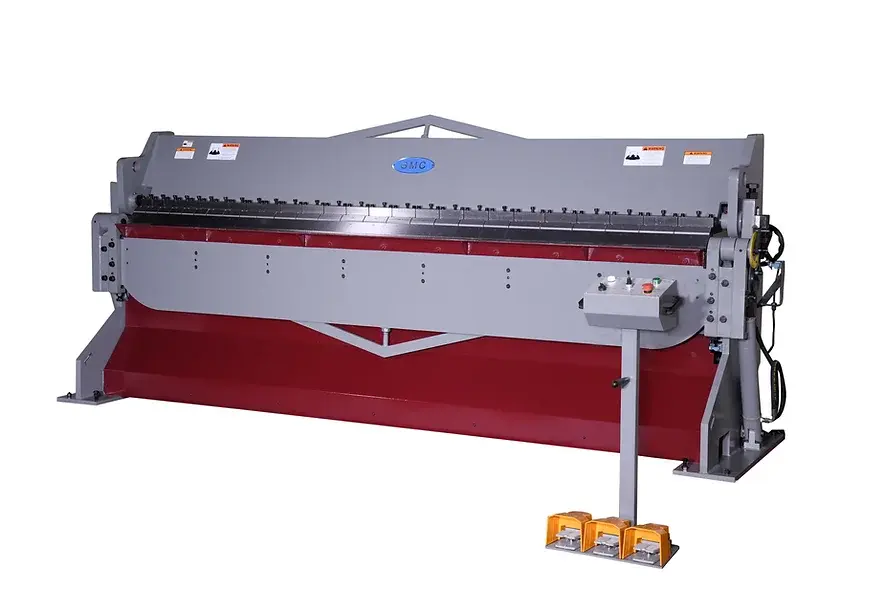

72 inch Sheet Metal Brake | Hydraulic Box and Pan Brake
Overview
Description
6′ x 10Ga. Hydraulic Box and Pan Brake with free angle set-up control
Standard Features
Taiwan Machines
ISO 9001 certified
Hydraulic adjustment for opening
Hydraulic power clamping for workpiece
26” manual back gauge with handwheel
1” manual beam adjustment ( front and back )
Min. reverse bend is ¾” (20mm)
Heavy welded all steel construction for maximum rigidity
Germany Rexroth Hydraulic logic system centrally located and quiet
A wide guidebody ensures strong, stable, smooth & accurate movement
Total pieces fingers assortment:
3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs
3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs
Central control panels on each side for convenient operation
Jog and auto operation modes
Overload protection and disconnect switch
One year warranty for parts
Product description
Specifications
Max Bending Length:: 6’
Bending Capacity:
Mild Steel
Stainless Steel: 10 Ga.
12 Ga.
Hemming max thickness:: 24 Ga.
Bend Degree:: 135
Max. Box Depth:: 6″
Large Beam Opening:: 3″
Manual Back Gauge:: 26”
Oil Tank Gal.: 12 Gal.
Hydraulic Oil:: Shell #68 or equivalent
Main Motor: 5 HP 3 Phase
Prewired: 220VAC 10A
Optional: 440VAC 5A
Weight: 5,000 lbs.
Shipping Weight:: 5,050 lbs.
Overall Dimensions: 91″ x 46″ x 67″
Shipping Dimensions:: 105” x 40” x 66”
