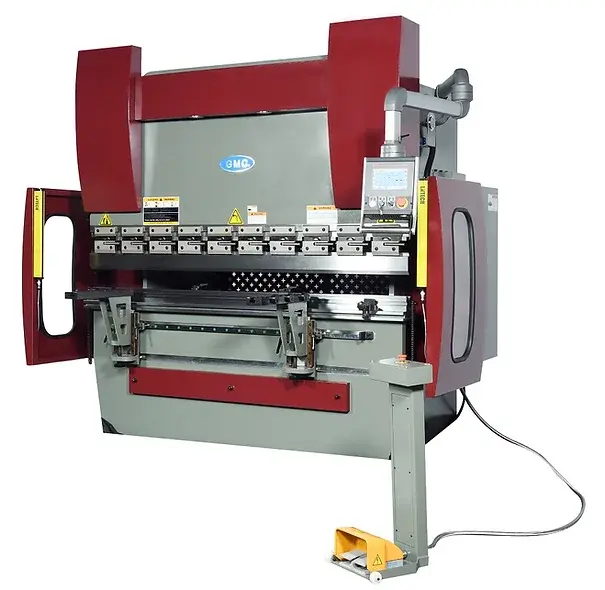

70-Ton 6’ CNC Press Brake – Small Hydraulic Press Brake

Our 70 ton press brake are equipped with a two axis ESA Control. This is a Taiwan quality machine, designed in the USA. With it’s rugged steel framework, quality hydraulic and electronic components, makes this press brake a great addition to any shop.
Product description

Maximum Pressure: 70 Tons
Bending Lenght Capacity: 80″ (6’8″)
Distance Between Uprights (housing): 63″
Ram Stroke Travel
Cylinder Travel Adjustment (max): 6″
3 1/8″
Table Width: 6″
Distance Between Table and Ram
Max Stacked Tooling Height: 15 1/4″
8-1/2″
Throat Depth: 10″
Back Gauge Distance: 24″
Back Gauge Repeatability: .0039″
Y-Axis Repeatability: .0039″
Approach speed, inch / second
Working speed, inch / second
Return speed, inch / second: 3.14”
0.35”
2.36”
Main motor:

Servo motor for back gauge:

Servo motor for bending angle
setting: 7-1/2 HP, 3 Phase 30 AMP
Prewired: 220VAC (+/- 10%)

1 HP, 3 Phase
220VAC (+/- 10%)

1/2HP, 3 Phase
220VAC (+/- 10%)
Hydraulic oil tank capacity:
Recommended Oil:: 52 Gal.
Hydraulic Oil Shell #68HD
Machine weight:
Machine size, L x W x H:
Shipping Dimensions:: 8,650 LBS
103″ x 63″ x 87”
109″x66″x98″
