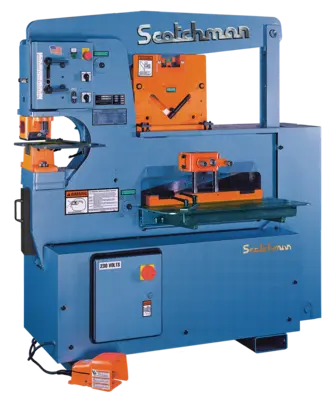

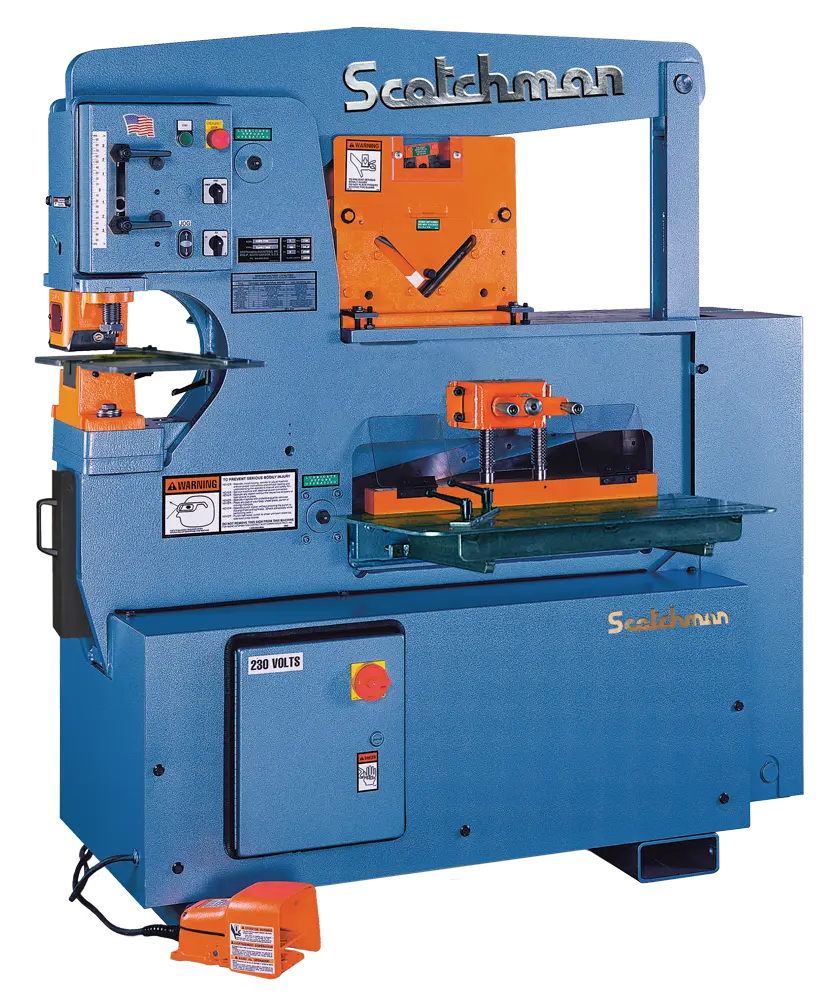

Single Operator with four built-in work stations. Can punch 1-1/16″ hole in 3/4″ plate.
More Versatility and Flexibility than Any Other Ironworker on the Market!
With a 65-ton punching capacity, this ironworker can punch 1-1/16″ hole through 3/4″ thick, 65,000 tensile plate. It has the largest flat bar shear capacity and the largest angle shear capacity of any machine in its class. Combining this machine’s large capacity with its large open tool table makes this machine the most versatile and flexible machine on the market.
A six inch angle shear comes standard and is located in our unique tool table area. This versatile workstation allows additional tooling to be quickly & easily swapped in and out so you can customize the machine to fit your needs.
This American-made ironworker is built tough and utilizes a hydraulic system with electric valve & remote foot pedal for ease of use, an adjustable electric stroke control with scale, and is backed by Scotchman’s industry leading 3-Year Warranty and lifetime customer support!
Product description
Single Operator, 4 Stations
65 Ton punch station
Keyed punch ram for safety
Punch gauging table with fence and scale
Die holder complete with 2″ die insert
Punch nut with wrench & stripper
One round punch & die: max. diameter 1-1/4″
Jog control
Adjustable electric stroke control with scale
Electric remote foot pedal
Flat bar shear with 4-way reversible blade
Shear table with miter fence
Angle shear
Tool table work area
Slug receptacle
Two-stage hydraulic pump
Electrical box supplied with emergency palm button and lock-out tag-out accommodations
All guards necessary to comply with ANSI B11.5 safety standards
Forklift accommodations
Warranty: Three years on parts
Made in USA
Punching Capacity: 58 mt
27 mm in 19 mm
Special Tooling: 102 mm Max. Dia.
Throat Depth: 229 mm
Flat Bar Shear: 610 mm
25 x 152 mm
19 x 254 mm
12 x 305 mm
10 x 406 mm
6 x 610 mm
Saber Blade (optional): 25 x 152 mm
12 x 406 mm
Angle Shear 90 degree: 152 x 152 x 10 mm
127 x 127 x 12 mm
Angle Shear 45 degree
w/Tool
w/Bar Shear: 76 x 76 x 10 mm
102 x 102 x 12 mm
Brake 12″: 36 mt
Brake 24″: 27 mt
Open End Brake: 6 x 127 mm
Rectangle Notcher: 51 x 63 x 10 mm
90 degree V-Notcher: 152 x 152 x 8 mm
Channel Shear: 51 to 127 mm adj.
Rod Shear
Round (max.)
Square (max.): 6 to 32 mm
6 to 25 mm
Square Tube Shear: 12 to 51 mm
0.105″ / 2.7 mm
Picket Tool: 12 , 19 , 25 mm
0.06″ / 1.5 mm
Weld Coupon Bender (max.): 51 x 10 mm
Offset Die Holder: Max. 36 mt
Strokes per Minute in Light Material: 1/4″ Stroke
Strokes per Minute in Heavy Material: 3/4″ Stroke
Hydraulics: 183 bar
Motor Standard: 3.73 kW
Motor Optional: 3.73 kW
Dimensions: L: 154.5 cm
W: 76 cm
H: 164 cm
Shipping Weight (may vary): 1,354 kg
