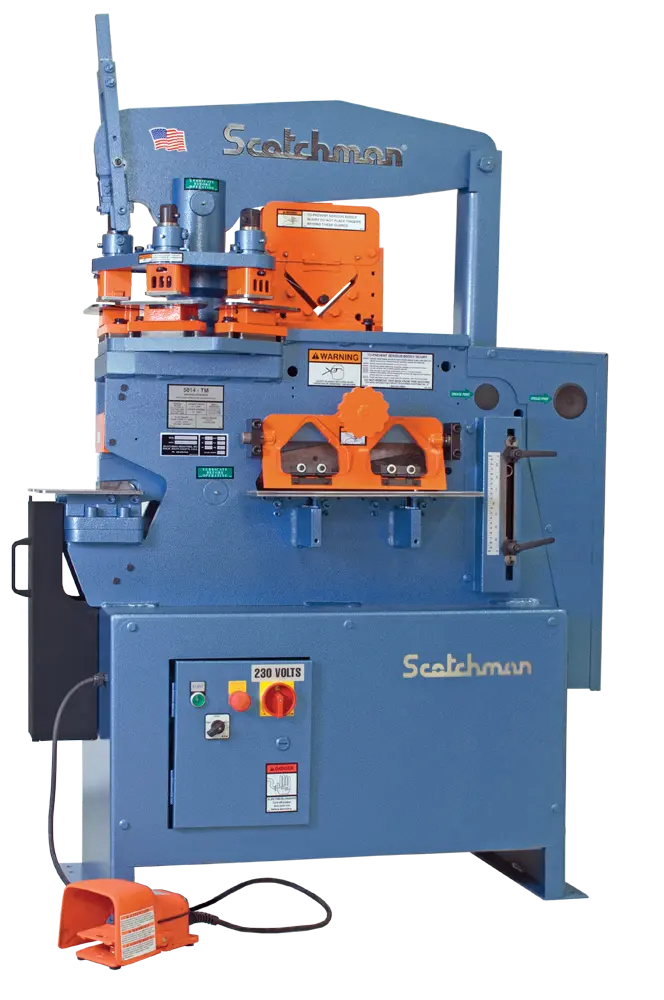

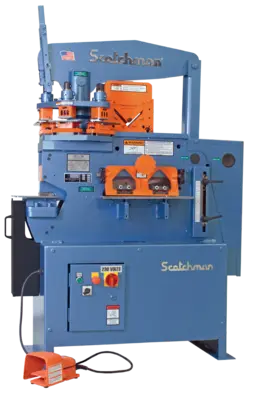

3 Station Turret Punch
Product description
Single Operator, 7 Stations
50 Ton punch station with 3-station revolving turret
Keyed punch ram for safety
2″ Die holder (one for each punch station – qty 3)
Punch nut with wrench & stripper (one for each punch station – qty 3)
One round punch & die: max. diameter 1″
Adjustable electric stroke control with scale
Electric remote foot pedal
Angle shear
Flat bar shear with 4-way reversible blade
Rectangle notcher
Tool table work area
Slug receptacle
Electrical box supplied with emergency palm button & lock-out tag-out accommodations
All guards necessary to comply with ANSI B11.5 safety standards
Forklift accommodations
Warranty: Three years on parts
Made in USA
Punching Capacity: 45 mt
32 mm in 12 mm
20 mm in 19 mm
Special Tooling: 57 mm Max. Dia.
Throat Depth: 102 mm
Flat Bar Shear: 356 mm
19 mm x 102 mm
12 mm x 203 mm
10 mm x 254 mm
6 mm x 356 mm
Saber Blade (optional): 12 mm x 254 mm
10 mm x 305 mm
Angle Shear 90 degree: 102 mm x 102 mm x 10 mm
Angle Shear 45 degree: 51 mm x 51 mm x 6 mm
Brake 8″: 23 mt
Brake 12″: 23 mt
Open End Brake: 6 mm x 76 mm
Rectangle Notcher: 63 mm x 76 mm x 8 mm
63 mm x 70 mm x 10 mm
90 degree V-Notcher: 152 mm x 152 mm x 3 mm
76 mm x 76 mm x 6 mm
Rod Shear
Round (max.)
Square (max.): 6 mm to 25 mm
6 mm to 19 mm
Square Tube Shear: 12 mm to 25 mm
0.105″ / 2.7 mm
Picket Tool: 12 mm, 19 mm, 25 mm
0.06″ / 1.5 mm
Weld Coupon Bender (max.): 51 mm x 10 mm
Strokes per Minute in Light Material: 1/4″ stroke
Strokes per Minute in Heavy Material: 3/4″ stroke
Hydraulics: 162 bar
Motor Standard: 2.24 kW
Motor Optional: 3.73 kW
Dimensions: L: 122.5 cm
W: 60 cm
H: 178.5 cm
Shipping Weight (may vary): 744 kg
