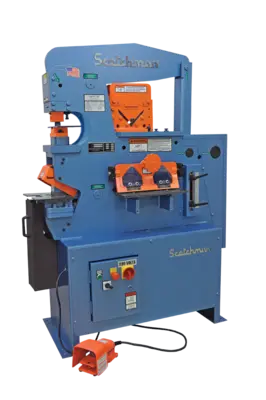

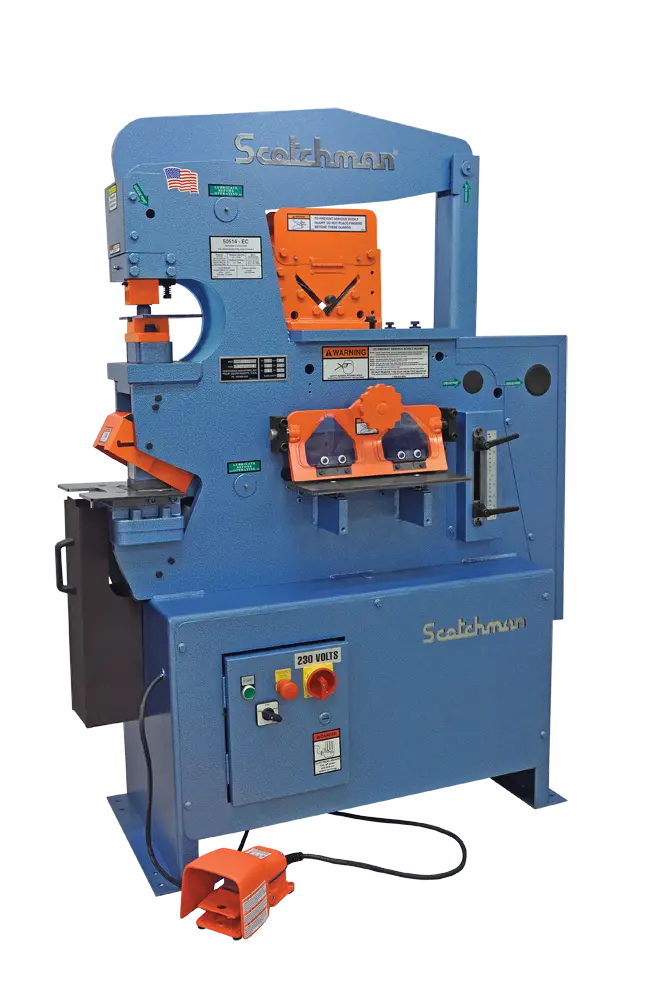

Single Station Punch
Product description
Single Operator, 5 Stations
50 Ton punch station
Keyed punch ram for safety
2″ Die holder
Punch nut with wrench & stripper
One round punch & die: max. diameter 1″
Adjustable electric stroke control with scale
Electric remote foot pedal
Angle shear
Flat bar shear with 4-way reversible blade
Rectangle notcher
Tool table work area
Slug receptacle
Electrical box supplied with emergency palm button & lock-out tag-out accommodations
All guards necessary to comply with ANSI B11.5 safety standards
Forklift accommodations
Warranty: Three years on parts
Made in USA
Punching Capacity: 45 mt
32 in 12 mm
20 in 19 mm
Special Tooling: 57 mm Max. Dia.
Throat Depth: 152 mm
Flat Bar Shear: 356 mm
19 x 102 mm
12 x 203 mm
10 x 254 mm
6 x 356 mm
Saber Blade (optional): 12 x 254 mm
10 x 305 mm
Angle Shear 90 degree: 102 x 102 x 10 mm
Angle Shear 45 degree: 51 x 51 x 6 mm
Brake 8″: 27 mt
Brake 12″: 23 mt
Open End Brake: 6 x 76 mm
Rectangle Notcher: 63 x 76 x 8 mm
63 x 70 x 10 mm
90 degree V-Notcher: 152 x 152 x 3 mm
76 x 76 x 6 mm
Rod Shear
Round (max.)
Square (max.): 6 to 25 mm
6 to 19 mm
Square Tube Shear: 12 to 25 mm
0.105″ / 2.7 mm
Picket Tool: 12 , 19 , 25 mm
0.06″ / 1.5 mm
Weld Coupon Bender (max.): 51 x 10 mm
Strokes Per Minute in Light Material: 1/4″ stroke
Strokes Per Minute in Heavy Material: 3/4″ stroke
Hydraulics: 162 bar
Motor Standard: 2.24 kW
Motor Optional: 3.73 kW
Dimensions: L: 122.5 cm
W: 60 cm
H: 161 cm
Shipping Weight (may vary): 717 kg
