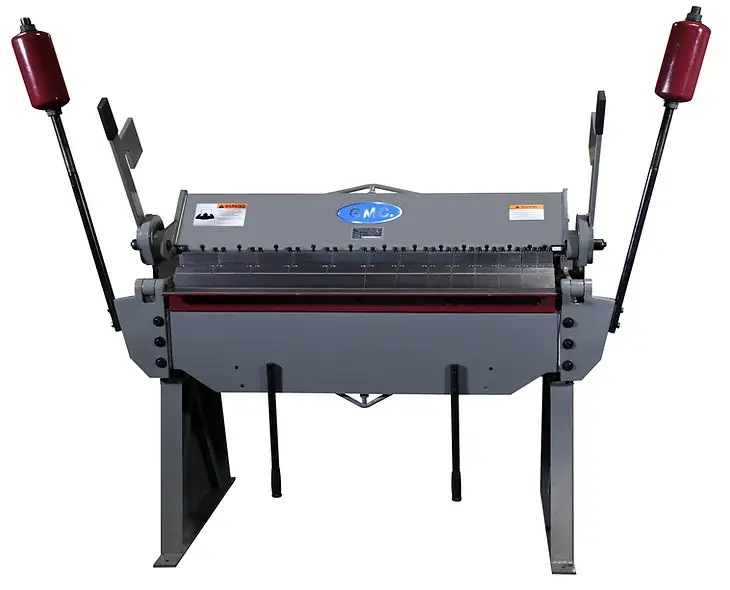

48″ Box and Pan Brake, Metal Finger Brake

The BB-412-6HD manual box and pan brake can make a 6″ box in depth and has a 48″ length capacity. Can bend up to 12 gauge mild steel or lighter. Our 48″ metal finger brake is compact and will be a perfect addition to any metal fabrication shop.
Product description

Bending capacity in Mild Steel:: 12 Ga.
Bending capacity in Stainless Steel:: 16 Ga.
Max. hemming thickness for mild steel:: 26 Ga.
Max. box depth: 6″
Bending length capacity: 4’
Bending angle, degree: 0-135
Beam adjustment, front and back: 1″
Minimum reserve bend: 1/2″
Manual clamping: Standard
Beam opening: 1-9/16″
Net weight: 1,150 lbs.
Shipping weight:: 1,265 lbs.
Machine Dimensions:: 82″ x 32″ x 69″
Shipping Dimensions:: 67” x 30” x 38”
