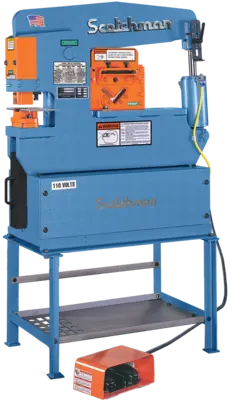

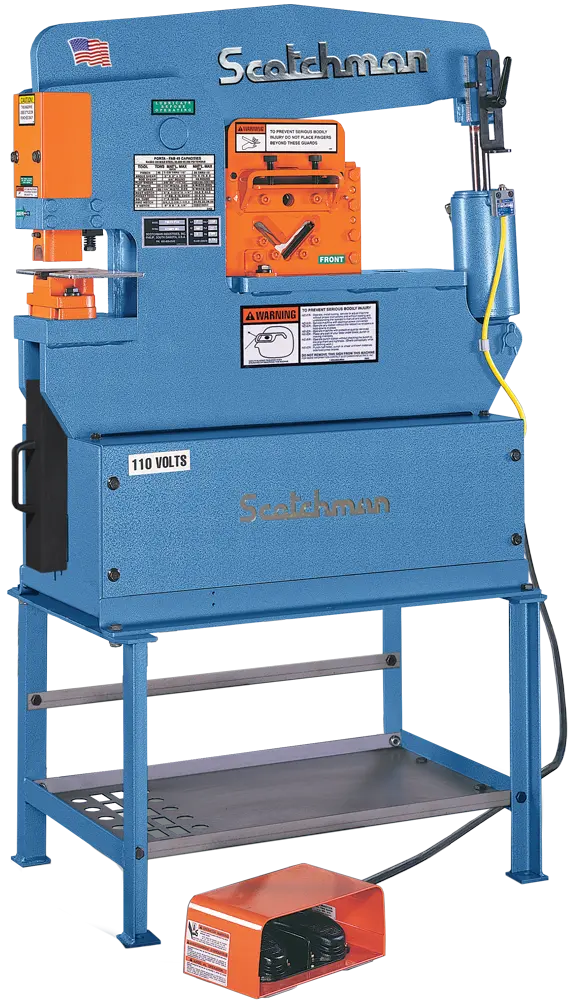

The Scotchman Porta Fab 45 ironworker is the perfect choice for the fabricator on-the-go!
It’s portable, versatile, and designed for in-plant or on-the-job operation!
With a 45-ton punching capacity, this ironworker can punch 1-1/8″ hole through 1/2″ mild steel and runs on 110-volt power from your standard wall outlet or generator. A 3-in-1 combination tool consisting of a flat bar shear, rod shear, and an angle shear comes standard and is located in our unique tool table area. This versatile workstation allows additional tooling to be easily swapped in and out so you can customize the machine to fit your needs.
This American-made ironworker is built tough and utilizes a hydraulic system with electric valve and remote foot pedal for ease of use, an adjustable electric stroke control with scale, and is backed by Scotchman’s industry leading 3-Year Warranty.
Product description
Single Operator, 4 Stations
Designed to be portable for job-site operation
45 Ton punch station
Keyed punch ram for safety
2″ Die holder
Punch nut with wrench & stripper
One round punch & die: max. diameter 1″
Adjustable electric stroke control with scale
Electric remote foot pedal
Three-in-One Combination Tool: Angle Shear, Bar Shear & Rod Shear
Tool table work area
Slug receptacle
Machine stand with punch & die and tooling storage rack
All guards necessary to comply with ANSI B11.5 Safety Standards
Warranty: Three years on parts
Made in the USA
Special Tooling: 57 mm Max. Dia.
Throat Depth: 108 mm
Flat Bar Shear: 152 mm
12 mm x 102 mm
10 mm x 152 mm
Angle Shear 90 degree: 76 mm x 76 mm x 8 mm
Angle Shear 45 degree: 51 mm x 51 mm x 6 mm
Round Rod Shear: 19 mm
Brake 8″: 23 mt
Brake 12″: 18 mt
Open End Brake: 6 mm x 76 mm
Rectangle Notcher: 51 mm x 44 mm x 6 mm
90 degree V-Notcher: 152 mm x 152 mm x 3 mm
Rod Shear
Round (max.)
Square (max.): 6 mm to 25 mm
6 mm to 19 mm
Square Tube Shear: 12 to 25 mm
0.105″ / 2.7 mm
Picket Tool: 12 mm, 19 mm, 25 mm
0.06″ / 1.5 mm
Weld Coupon Bender (max.): 51 mm x 10 mm
Strokes per minute in light material: 1/4″ Stroke
Strokes per minute in heavy material: 3/4″ Stroke
Hydraulics: 172 bar
Motor Optional: 1.49kW
Dimensions: L: 97 cm
W: 51 cm
H: 100 cm
Shipping Weight (may vary): 322 kg
