40″ x 75″ Wide Belt Sander | 15 HP Metal Sanding Machine
Overview
Description

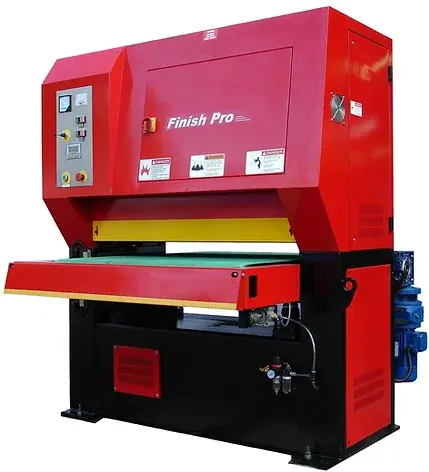

Our 40″ Metal Wide Belt Sander are great for deburring and finishing parts in the production and manufacturing industries. Save time with our effortless belt changing system. Avoid shutting down for hours to simply replace your metal wide belt. GMC’s Finish Pro metal wide belt sanders for deburring and finishing parts in the production and manufacturing industries. 15HP, 230V / 460V, 3PH
Product description
Specifications
Max. Part Width: 40″
Abrasive Belt Size: 40″ x 75″
Contact Roller Size: 8″ Dia.
Passline Height: 31″ – 37″
Max. Thickness Capacity
Min. workpiece length
Max. workpiece weight: 6 1/8″
Min 8”, need a fixture for smaller parts 375 LBS
Conveyor Drive Speeds: 8 – 40 FPM
Infeed Conveyor Length: 20″
Dust Colector Capacity: 1,800 CFM
Main Motor: 15 HP 3 Phase
Prewired: 230VAC
Optional: 460VAC
Conveyor Motor: 1.5 HP 3 Phase
Prewired: 230VAC
Optional: 460VAC
Table Lifting Motor: 1 HP 3 Phase
Prewired: 230VAC
Optional: 460VAC
Net Weight, Approx.
Shipping Weight:: 4,650 LBS
4,859 LBS
Machine Dimensions: (LxWxH)
Shipping Dimensions:: 76″ x 88″ x 81″
73″ x 67″ x 86″
