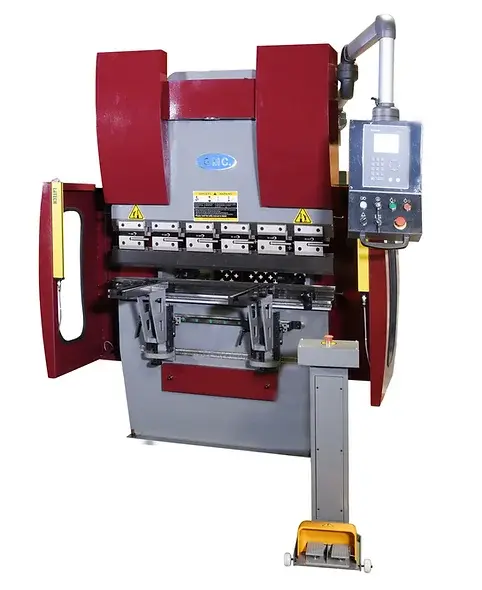

Our GMC HPB-4504 is a 45 ton press brake with two axis ESA Control. This is a Taiwan quality machine, designed in the USA. With it’s rugged steel framework, quality hydraulic and electronic components, makes this press brake a great addition to any shop.
Product description
Maximum Pressure: 45 Tons
Bending Lenght Capacity: 59 1/4″ (4’1″)
Distance Between Uprights (housing): 33 1/2″
Ram Stroke Travel
Cylinder Travel Adjustment (max): 6″
2″
Table Width: 6″
Distance Between Table and Ram
Max Stacked Tooling Height: 13″
8-1/2″
Throat Depth: 8 1/2″
Back Gauge Distance: 24″
Back Gauge Repeatability: .0039″
Y-Axis Repeatability: .0039″
Approach speed, inch / second
Working speed, inch / second
Return speed, inch / second: 3.54”
0.78”
2.75”
Main motor:
Servo motor for back gauge:
Servo motor for bending angle
setting:: 5-1/2 HP, 3 Phase, 25 AMP
Prewired: 220VAC (+/- 10%)
1 HP, 3 Phase
220VAC (+/- 10%)
1/2 HP, 3 Phase
220VAC (+/- 10%)
Hydraulic oil tank capacity:
Recommended Oil:: 25 Gal.
Hydraulic Oil Shell #68HD
Machine weight:
Machine size, L x W x H:
Shipping dimensions:: 6,150 LBS
71″ x 56″ x 81”
79″x63″x89″
