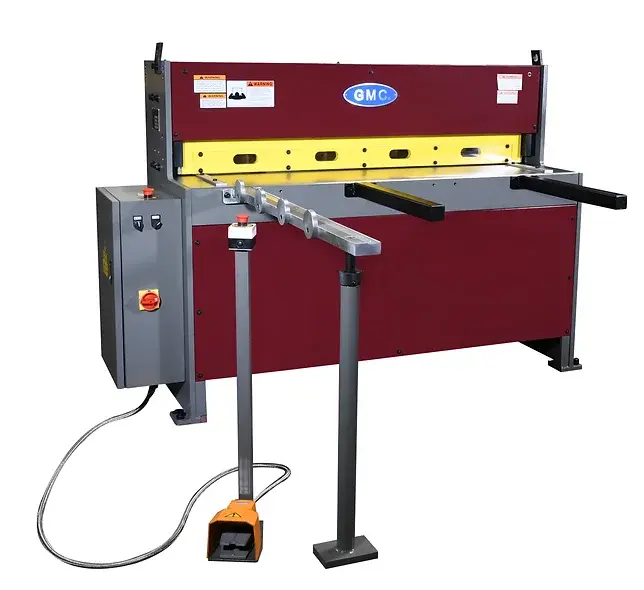

Shop our 4 foot mechanical shears that are capable of cutting up to 10 gauge mild steel and 14 gauge stainless. Our sheering machines are designed as a low maintenance design with an array of features that will add value to any machine shop.
26” manual back gauge with one side operated handwheel.
60” long squaring arm with inch / mm scale, mounted on right side of the table
2 each 24” front support arms
Full length finger guard
Removable safety foot pedal control
One set of upper & lower blades
Product description
Cutting Capacity
Mild Steel – HRS (tensile 60,000 PSI)
Stainless Steel (tensile 85,000 PSI)
Soft Aluminum (tensile 28,000 PSI): 4′ x 10Ga.
4′ x 14Ga.
4′ x 1/4″
Blade Lenght: 52″
Strokes per minute: 30
Worktable height: 32″
Front support arm: 36″
Back gauge: 26″ Manual Back gauge
Blade Rake Angle: 2.2 Degree
Main Motor: 5-1/2HP, 3 Phase 20A
Prewired: 220VAC
(10A/440VAC optional)
Machine weight
Shipping weight: 3,110 lbs.
3,150 lbs.
Machine dimensions
Shipping dimensions: 73″ x 43″ x 68″
80″ x 40″ x 62″
