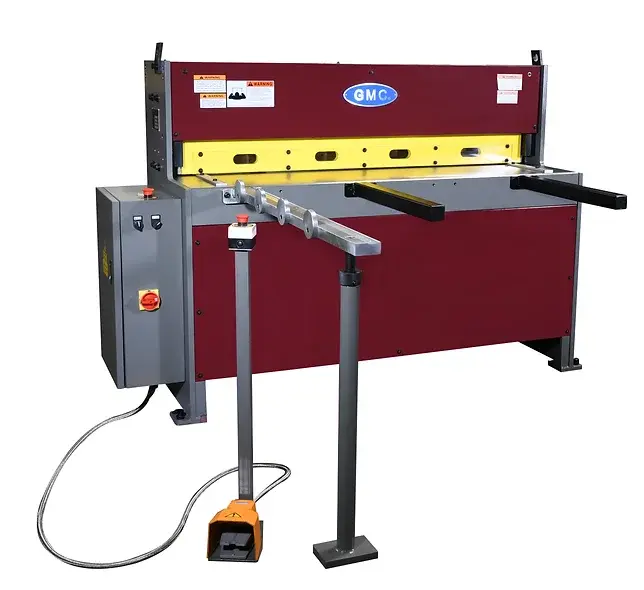

4 Foot Mechanical Shear – 12Ga. Electric Shearing Machine

Shop our 4 foot mechanical shears that are capable of cutting up to 12 gauge mild steel and 16 gauge stainless. Our sheering machines are designed as a low maintenance design with an array of features that will add value to any machine shop.


Mechanical Shear Standard Equipment
26” manual back gauge with one side operated handwheel
60” long squaring arm with inch / mm scale, mounted on right side of the table
2 – 24” front support arms
Full length finger guard
Removable safety foot pedal control
One set of top & lower blades
Product description

Cutting Capacity
Mild Steel – HRS (tensile 60,000 PSI)
Stainless Steel (tensile 85,000 PSI)
Soft Aluminum (tensile 28,000 PSI): 4′ x 12 Ga.
4′ x 16 Ga.
4′ x 8 Ga.
Blade Length: 52″
Strokes per minute: 35
Worktable height: 32″
Front support arm: 36″
Go-to Back gauge: 26″ manual back gauge
Blade Rake Angle: 2 Degree
Main Motor: 4HP, 3 Phase 15 AMP
Prewired: 220VAC
(7A/440VAC optional)
Machine weight
Shipping weight: 2,110 LBS
2,123 LBS
Machine dimensions
Shipping dimensions: 72″ x 42″ x 67″
80″ x 35″ x 61″
