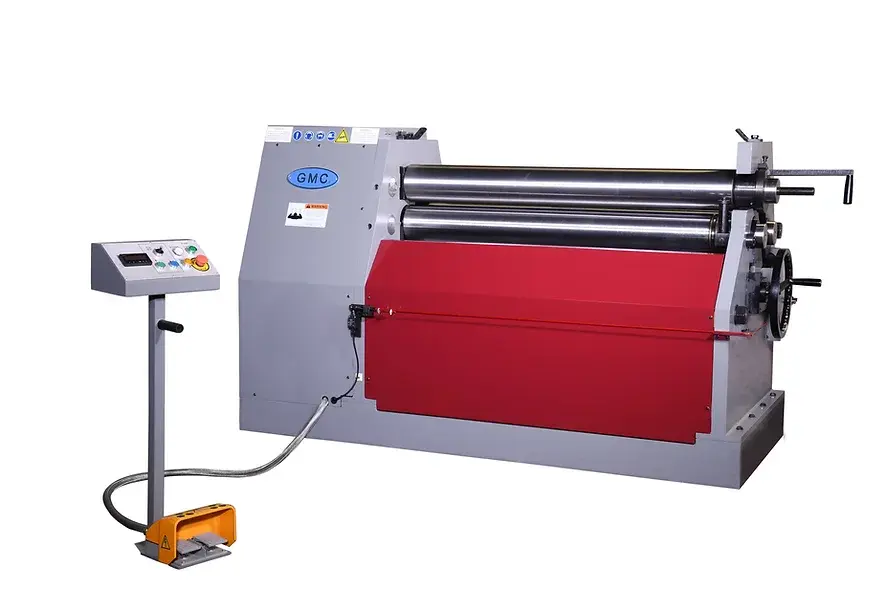

4′ x 1/4″ Plate Rolls – Metal Rolling Machines

Our HBR-0425, 4 foot plate rolls are made for bending and rolling 1/4″ metal sheets or plates into cones and other cylindrical shapes. All three rolls are hydraulic driven, hardened, and made of high grade alloy steel. Equipped with a cone attachment, LED digital readout, operation pedal controls safety line, and a quiet hydraulic system.
Product description

Roll Capacity:
Mild Steel: 4′ x 1/4″
Stainless Steel: 4′ x 3/16″
Min. Roll dia.: 8″
Rolls Length: 4′ 3″
Rolls Dia.: 6″
Pre-bend: 0.18″
Rolls speed: 5 RPM
Rolls Opening: 2 1/2″
Oil Tank Cap.: 45L = 12 Gal.
Main Motor: 3 HP
Weigth: 4,650 lbs.
Dimensions: 87″ x 36″ x 53″
