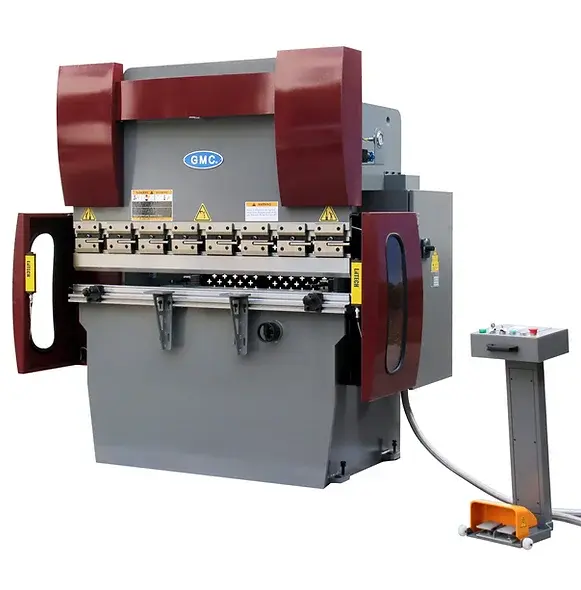

33-Ton 5’ CNC Press Brake – Small Hydraulic Press Brake

Our GMC HPB-3305CNC is a 33 ton press brake with two axis Estun Control. This is a Taiwain quality machine, designed in the USA. With it’s rugged steel framework, quality hydraulic and electronic components, makes this press brake a great addition to any shop.
Product description

Maximum Pressure: 33 Tons
Bending Lenght Capacity: 63″ (5’3″)
Distance Between Uprights (housing): 51″
Ram Stroke Travel
Cylinder Travel Adjustment (max): 4″
2″
Table Width: 6″
Distance Between Table and Ram: 13-1/4″
Throat Depth: 8″
Back Gauge Distance: 21″
Back Gauge Repeatability: .008″
Y-Axis Repeatability: .008″
Approach speed, inch / second
Working speed, inch / second
Return speed, inch / second: 3.5”
0.39”
2.75”
Main motor:

Motor for back gauge:

Motor for bending angle
setting:: 7-1/2 HP, 3 Phase 30 AMP
Prewired: 220VAC (+/- 10%)

1 HP, 3 Phase
220VAC (+/- 10%)

1/2HP, 3 Phase
220VAC, (+/- 10%)
Hydraulic oil tank capacity:

Recommended Oil:: 20 Gal.

Hydraulic Oil Shell #68HD
Machine weight:
Machine size, L x W x H:
Shipping dimensions:: 5,350 LBS
91″x56″x87”
91″x56″x87″
